Citrate-free workflow
Runs ESR from the same EDTA / CBC tube used for the blood count — no separate citrate tube or dilution step.

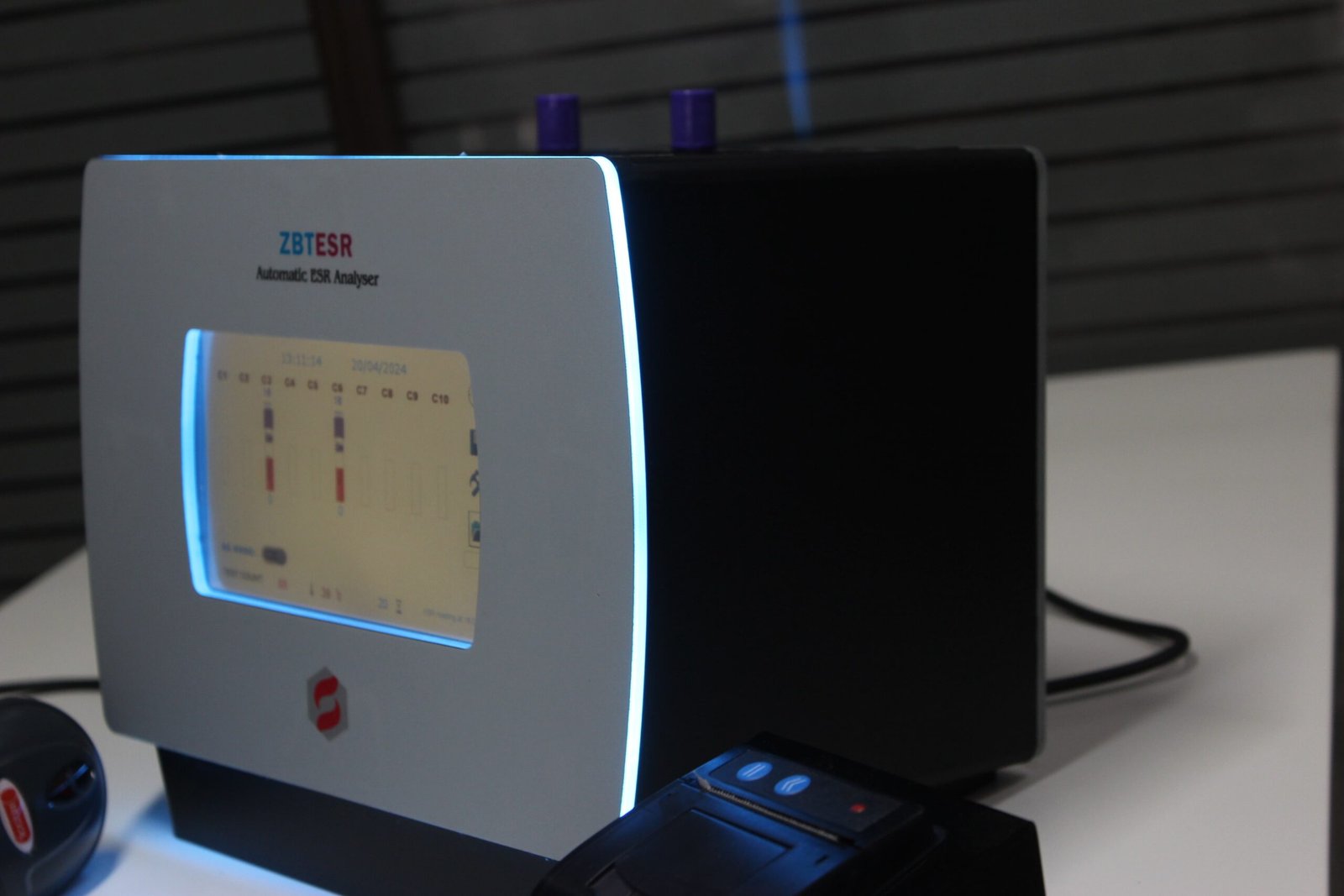

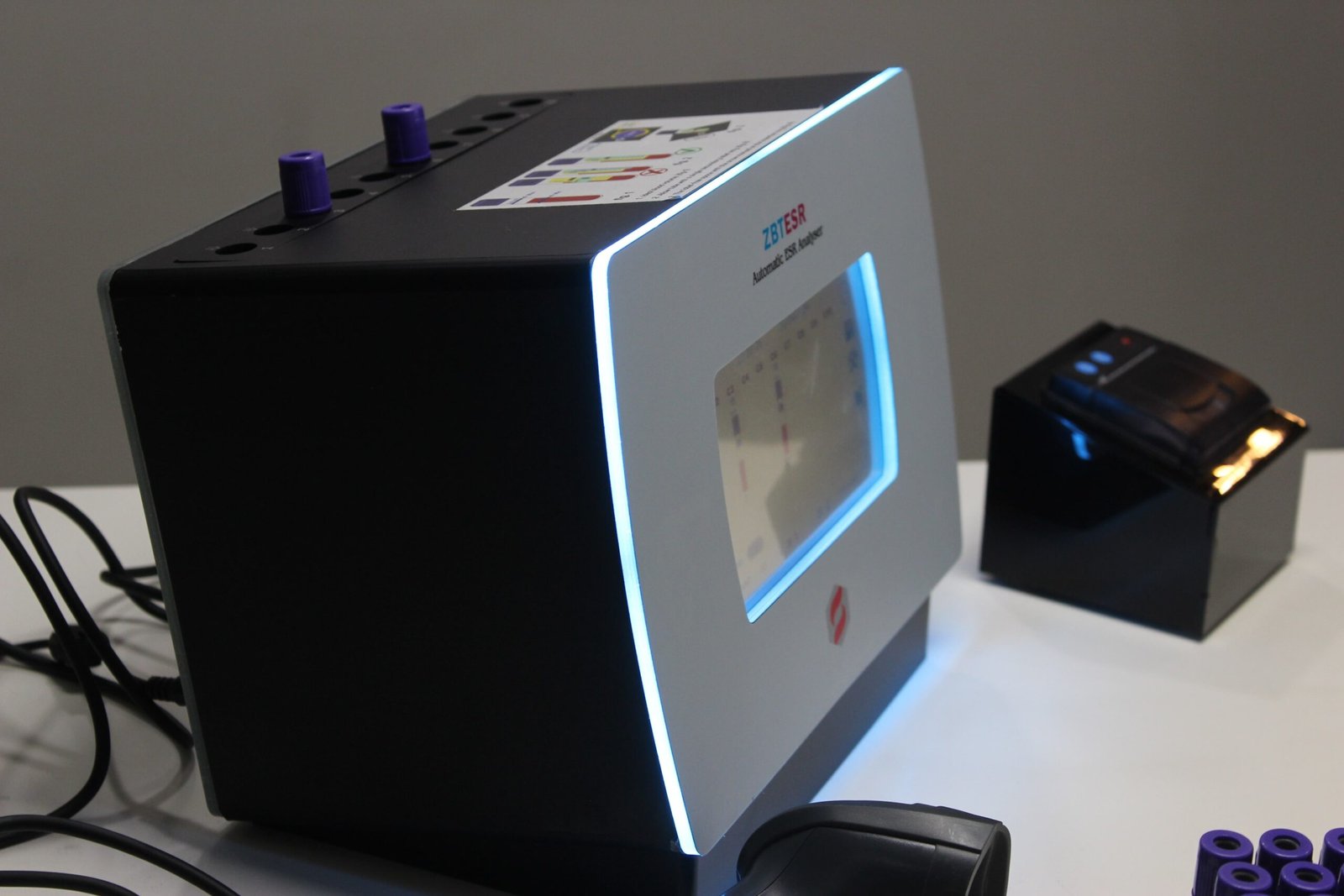

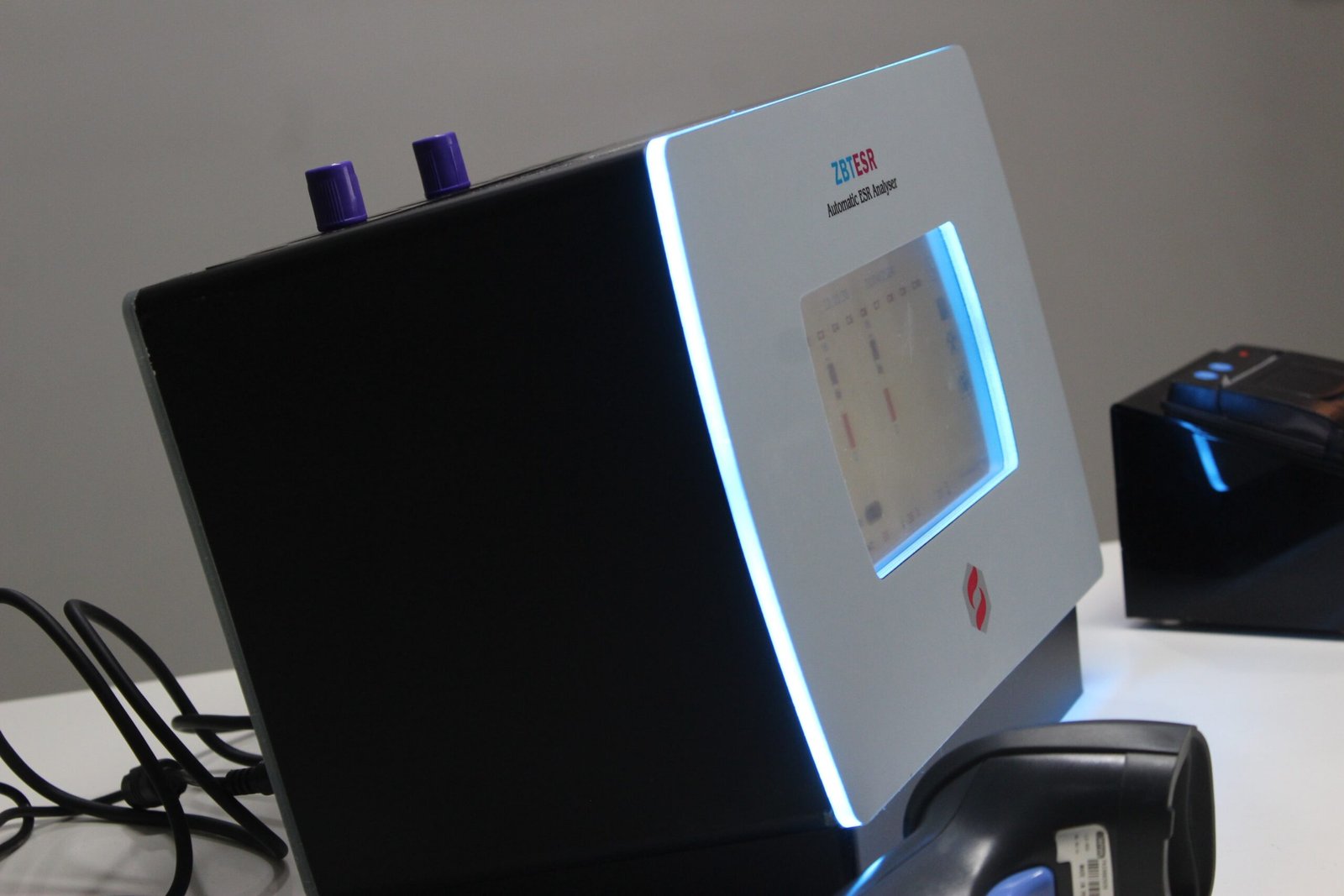

Automatic ESR Analyser · DT10
ZBT-ESR® Automated ESR Analyzer — Modified Westergren from the EDTA / CBC Tube
Sedimentation, simplified — automated modified-Westergren ESR straight from the EDTA / CBC tube you already draw for the blood count.
- Runs from the EDTA / CBC tube — citrate-free
- Only 2 mL of whole blood
- Modified Westergren, reported at 18 °C
- Results in about 20 minutes
Overview

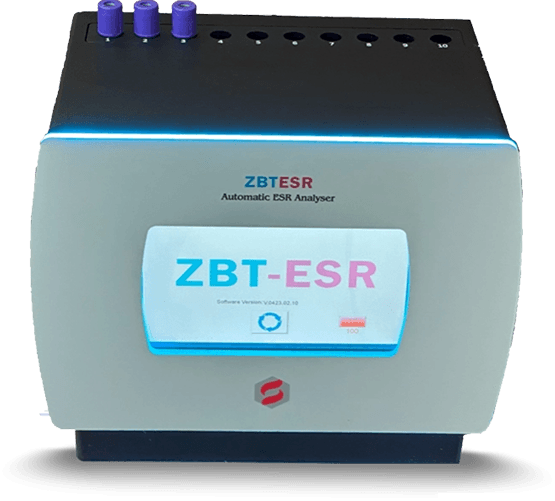

ZBT-ESR® esr analyzer

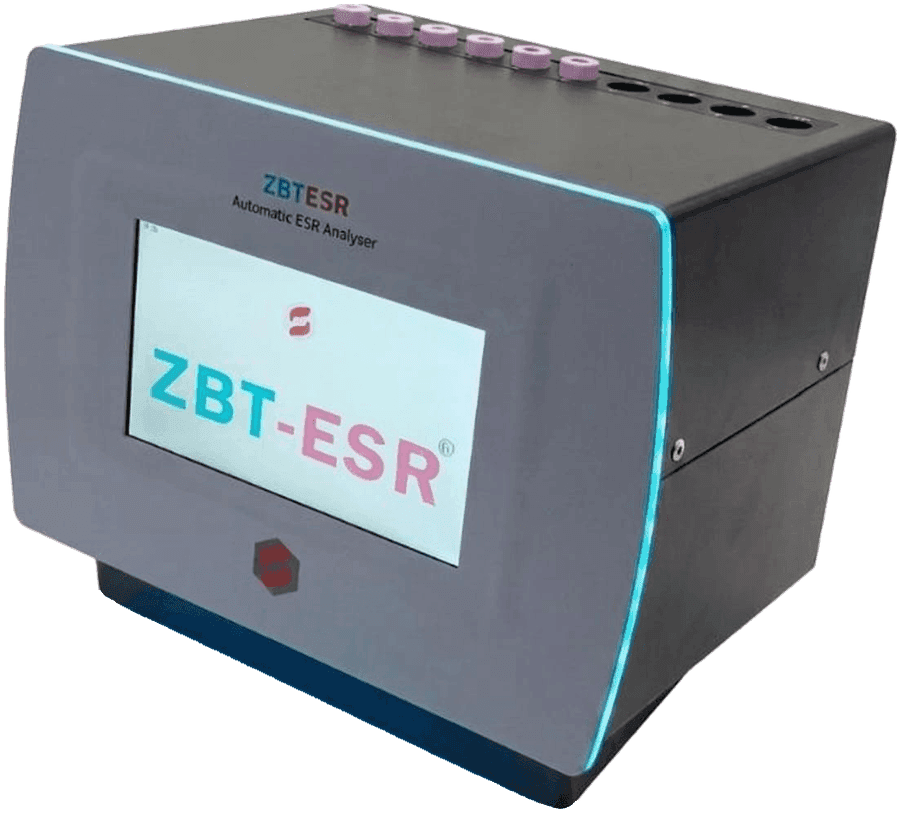

ZBT-ESR® (model DT10) is an automated erythrocyte sedimentation rate analyzer that runs the ESR test directly from the standard EDTA / CBC tube already drawn for the complete blood count — with no separate citrate tube and as little as 2 mL of whole blood.
Read the full overview
Samples load continuously with random access across 10 channels (up to 60), and results are calculated by a modified Westergren method reported at 18 °C in about 20 minutes. Because the test uses the same EDTA / CBC tube as the blood count, there is no citrate dilution step and no liquid waste to dispose of.

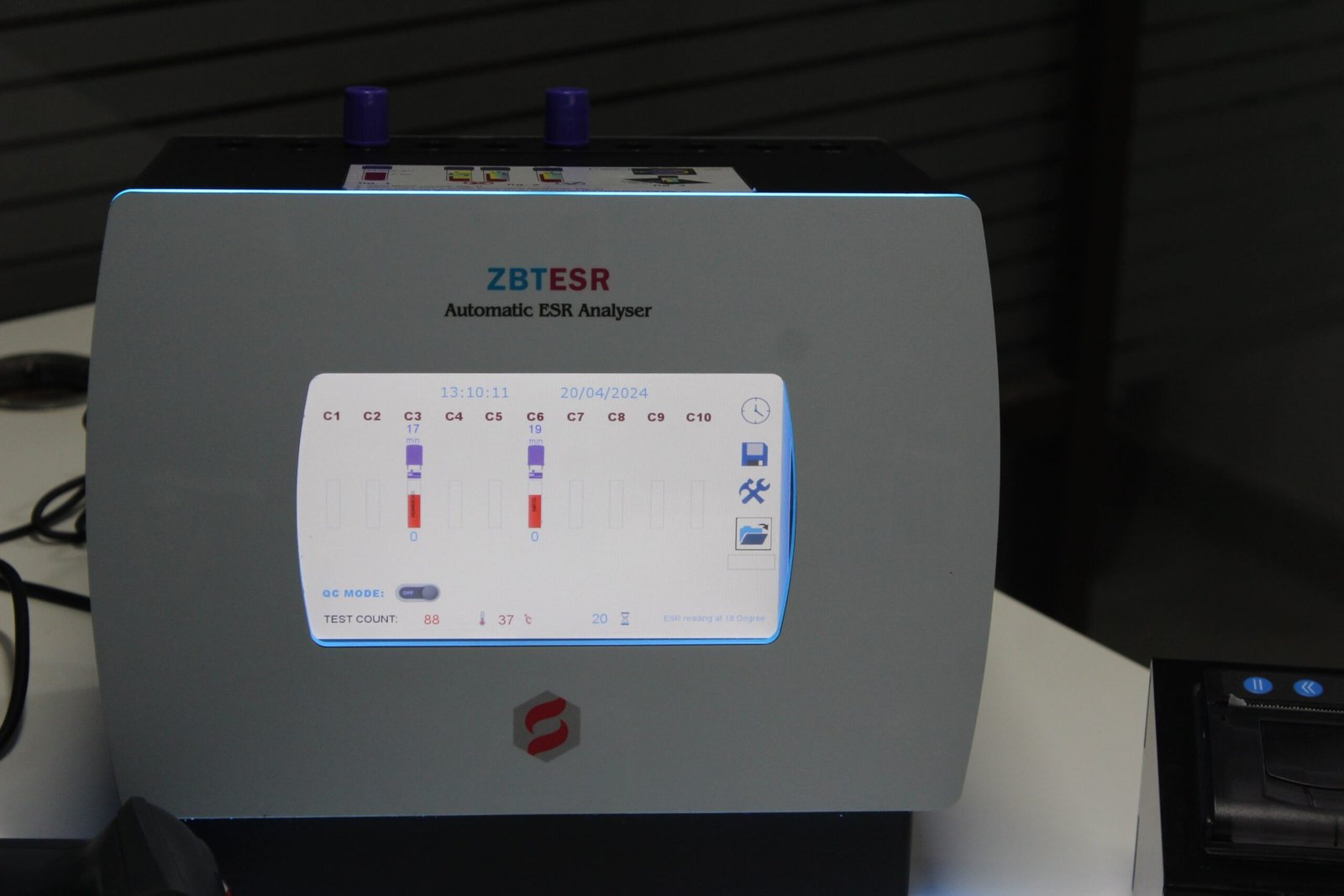

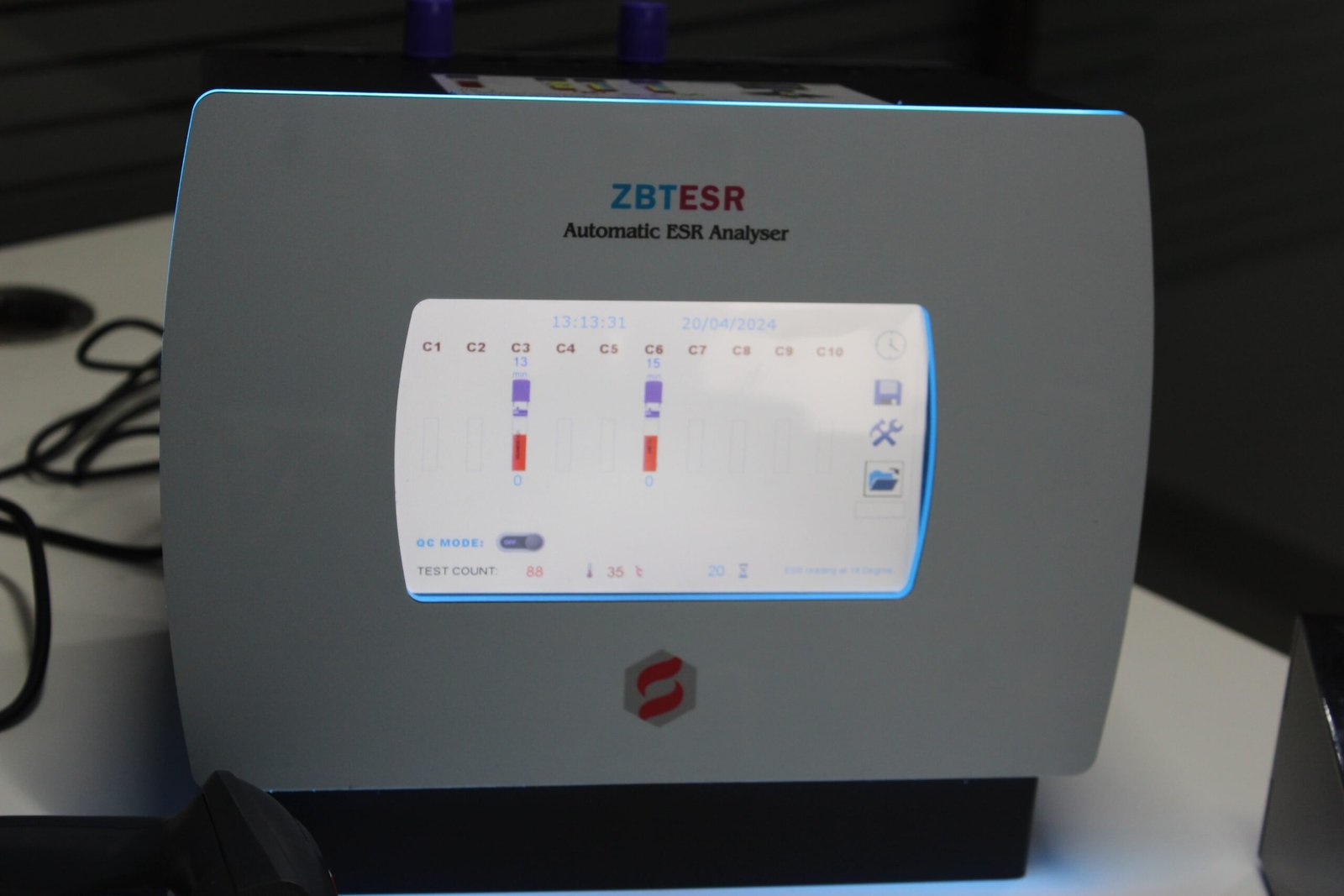

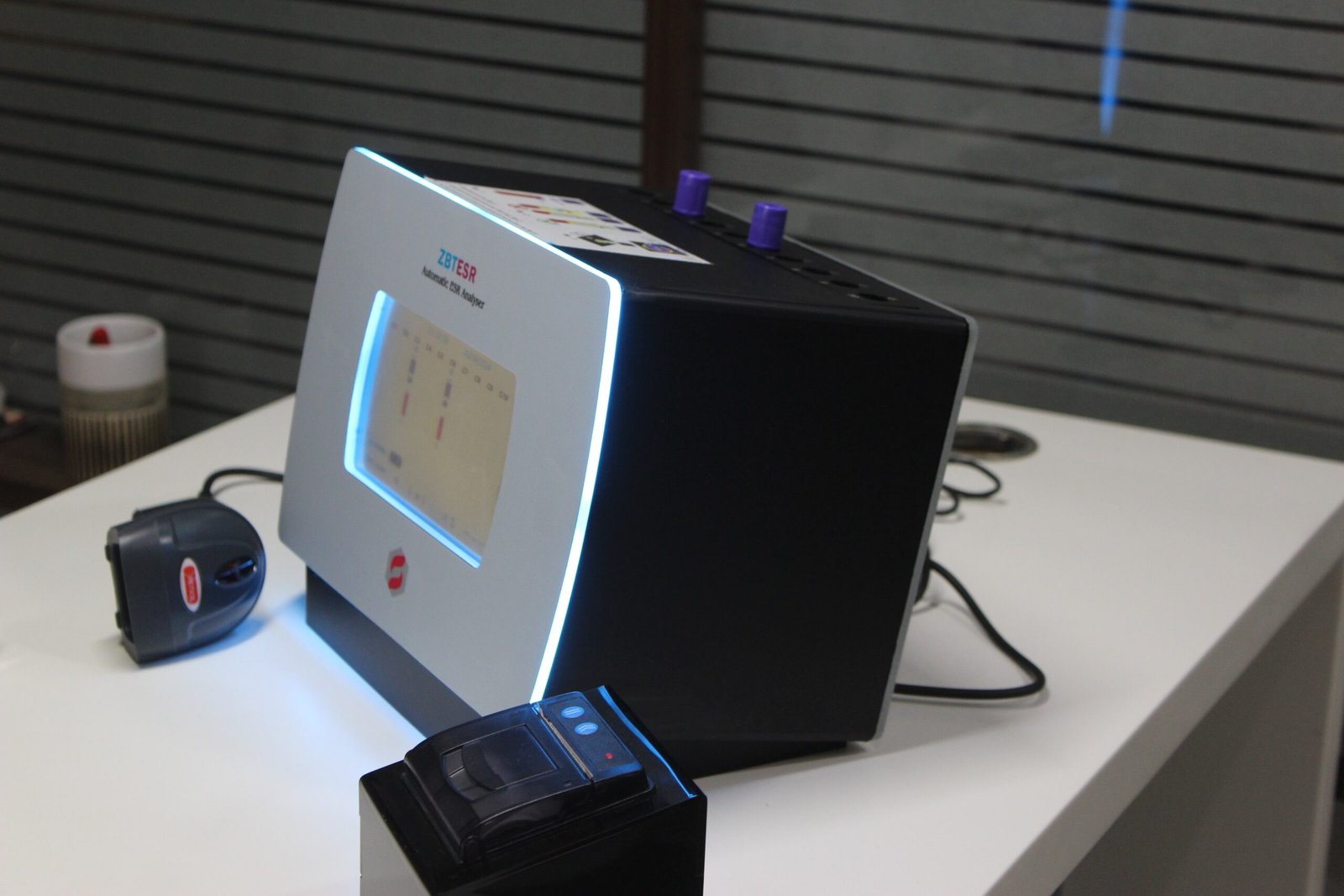

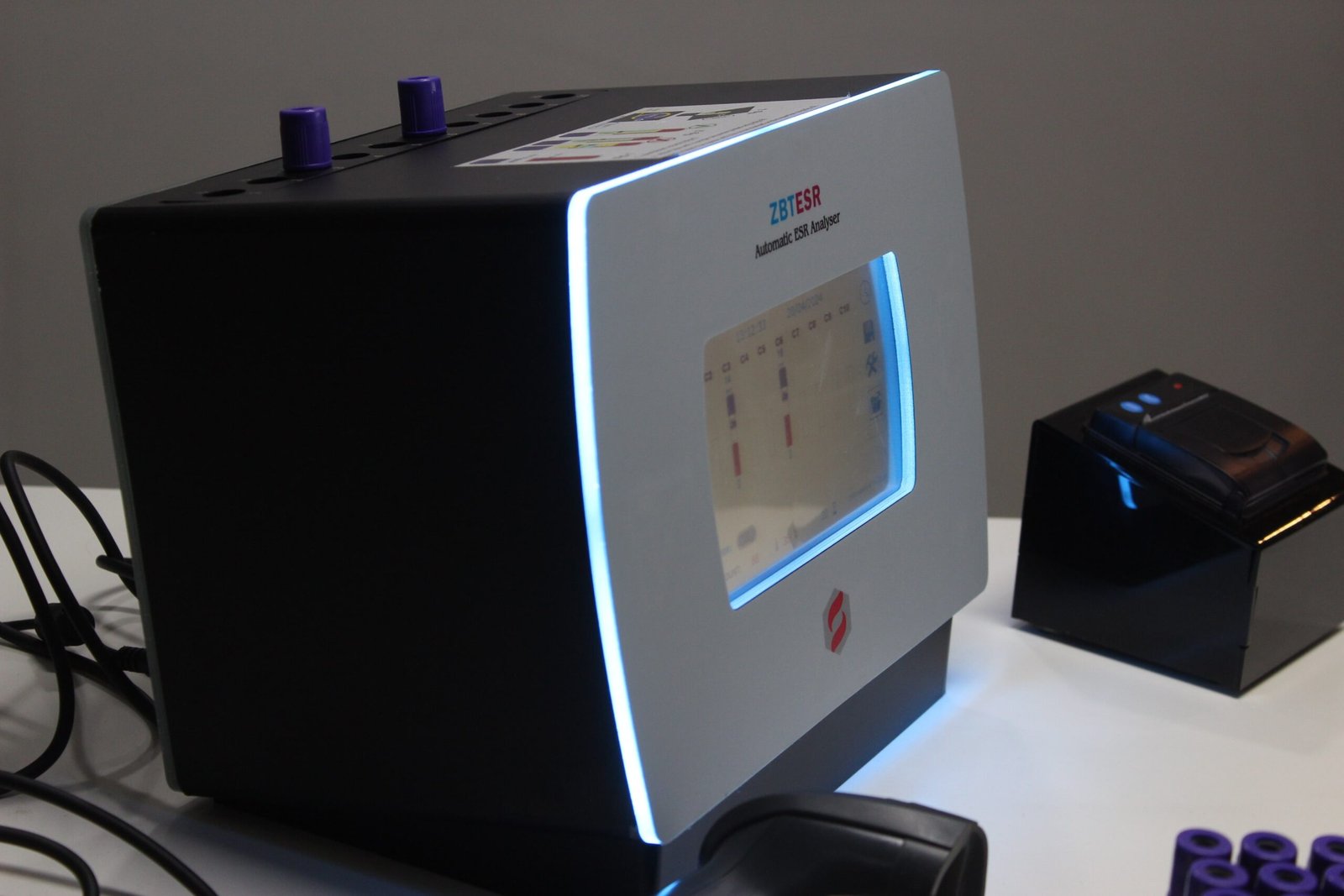

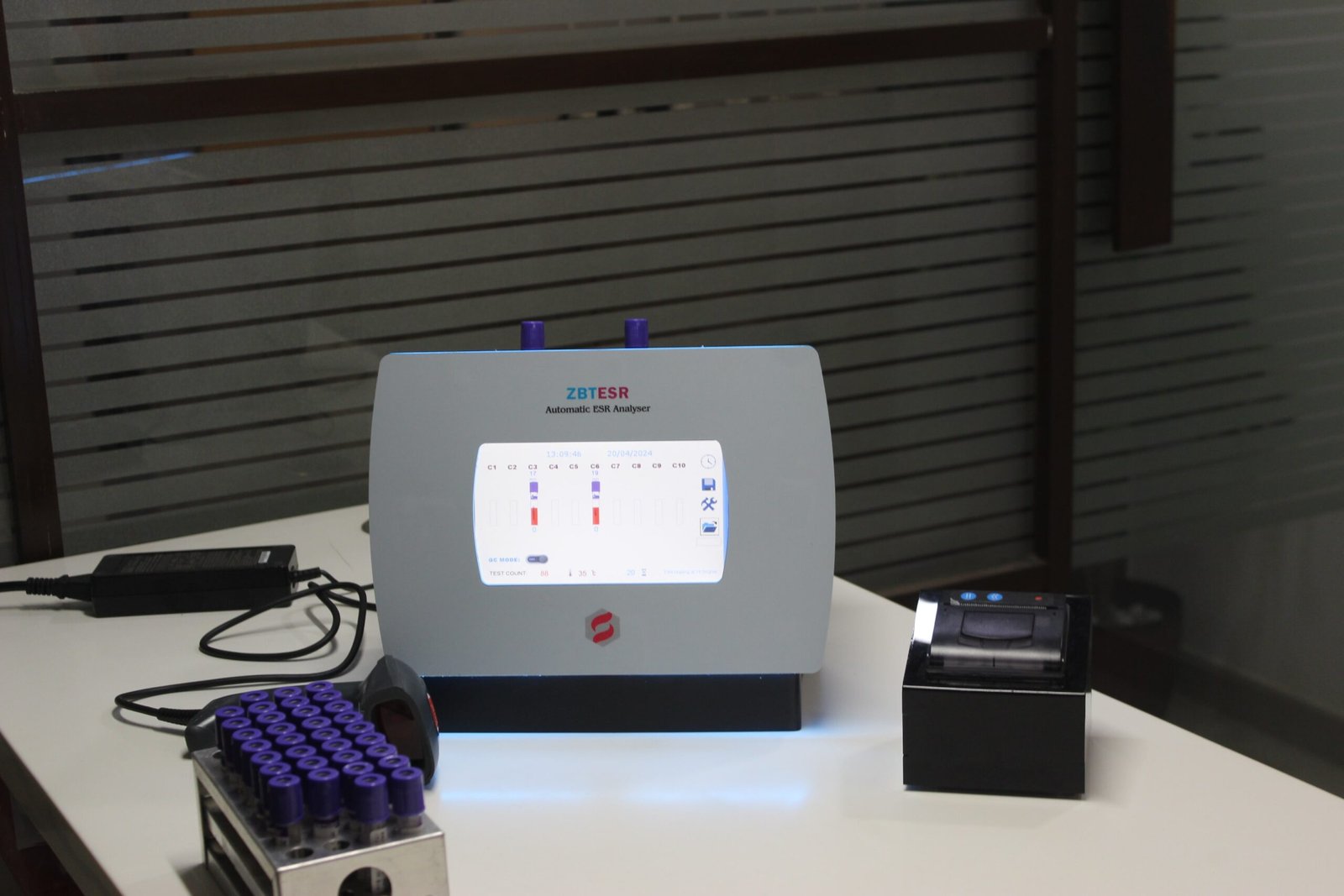

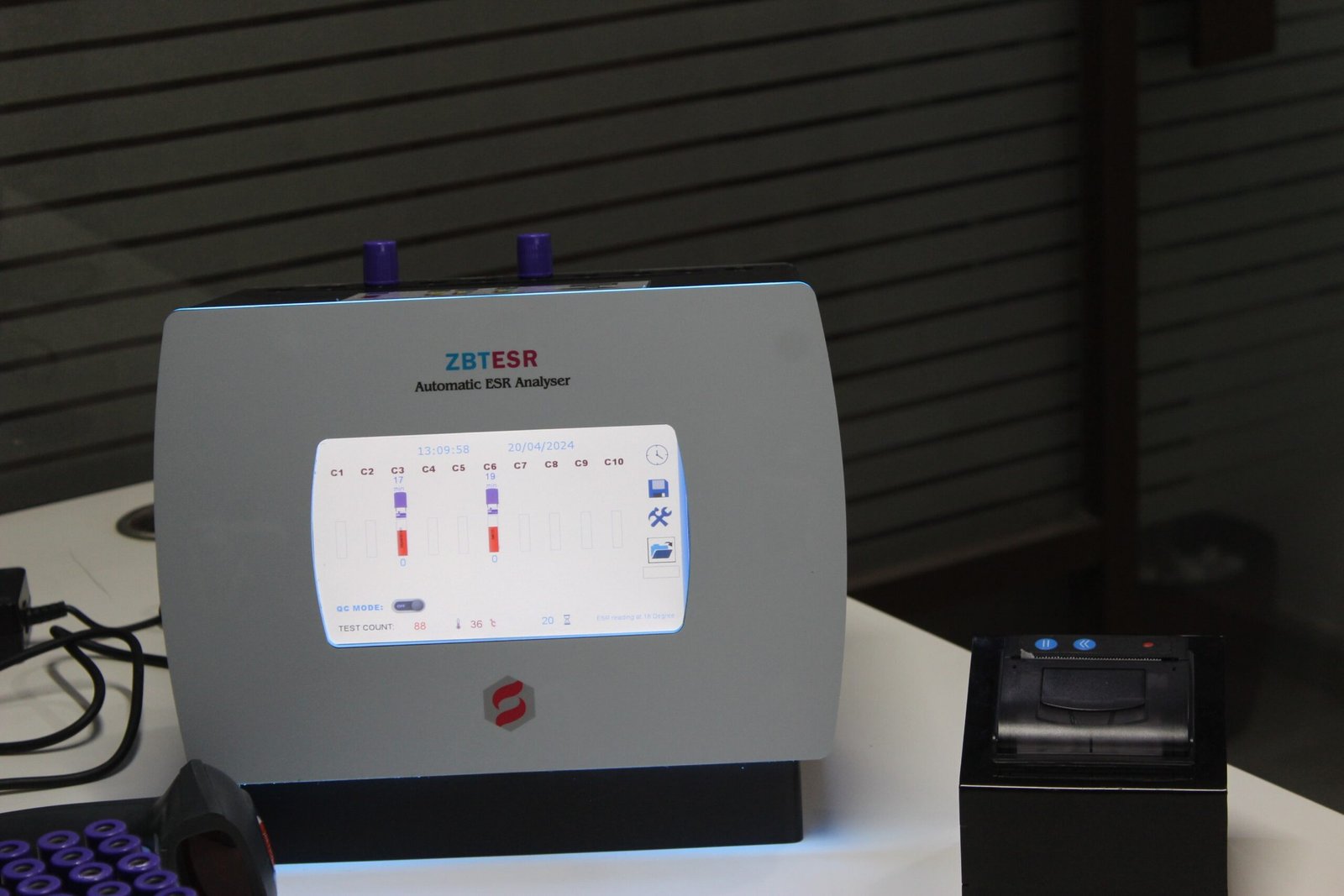

A compact 7" / 10" color touchscreen, barcode reader, thermal printer, and LIS connectivity over RS-232 with HL7 keep everyday operation fast, traceable, and low-maintenance.
At a glance
- Method
- Modified Westergren, reported at 18 °C
- Channels
- 10 / 60, random access
- Result time
- ~20 minutes
- Sample
- 2 mL whole blood (EDTA / CBC tube)
Who is it for?
Clinical and pathology laboratories and hospital diagnostic departments that run ESR alongside the complete blood count.
What problem does it solve?
Traditional citrate ESR needs a separate tube and dilution step, generates liquid waste, and is slow — adding cost and turnaround pressure.
Key features
Small sample volume
Requires as little as 2 mL of whole blood, supporting efficient sample use.
Modified Westergren
Results are calculated by a modified Westergren method and reported at 18 °C for consistency.
Random-access loading
Continuous random access across 10 channels (up to 60) so urgent samples are not held up.
No liquid waste
Because there is no citrate dilution, there is no liquid waste to dispose of — lowering disposal cost.
Connected & simple
Compact 7" / 10" color touchscreen with barcode reader, thermal printer, and LIS over RS-232 / HL7.
How it works
- 01
Load the EDTA / CBC tube
Place the standard EDTA tube directly into any free channel — random access across 10 (up to 60) channels.
- 02
Modified Westergren read
The analyzer measures and calculates the result by a modified Westergren method, reported at 18 °C.
- 03
Result in ~20 minutes
Results are displayed, printed, and transmitted to the LIS over HL7 — with no liquid waste.
Technical specifications
- Method
- Modified Westergren, reported at 18 °C
- Channels
- 10 / 60, random access
- Result time
- ~20 minutes
- Sample
- 2 mL whole blood (EDTA / CBC tube)
- Display
- 7" / 10" color touchscreen
- Data storage
- 9,999 results
- Connectivity

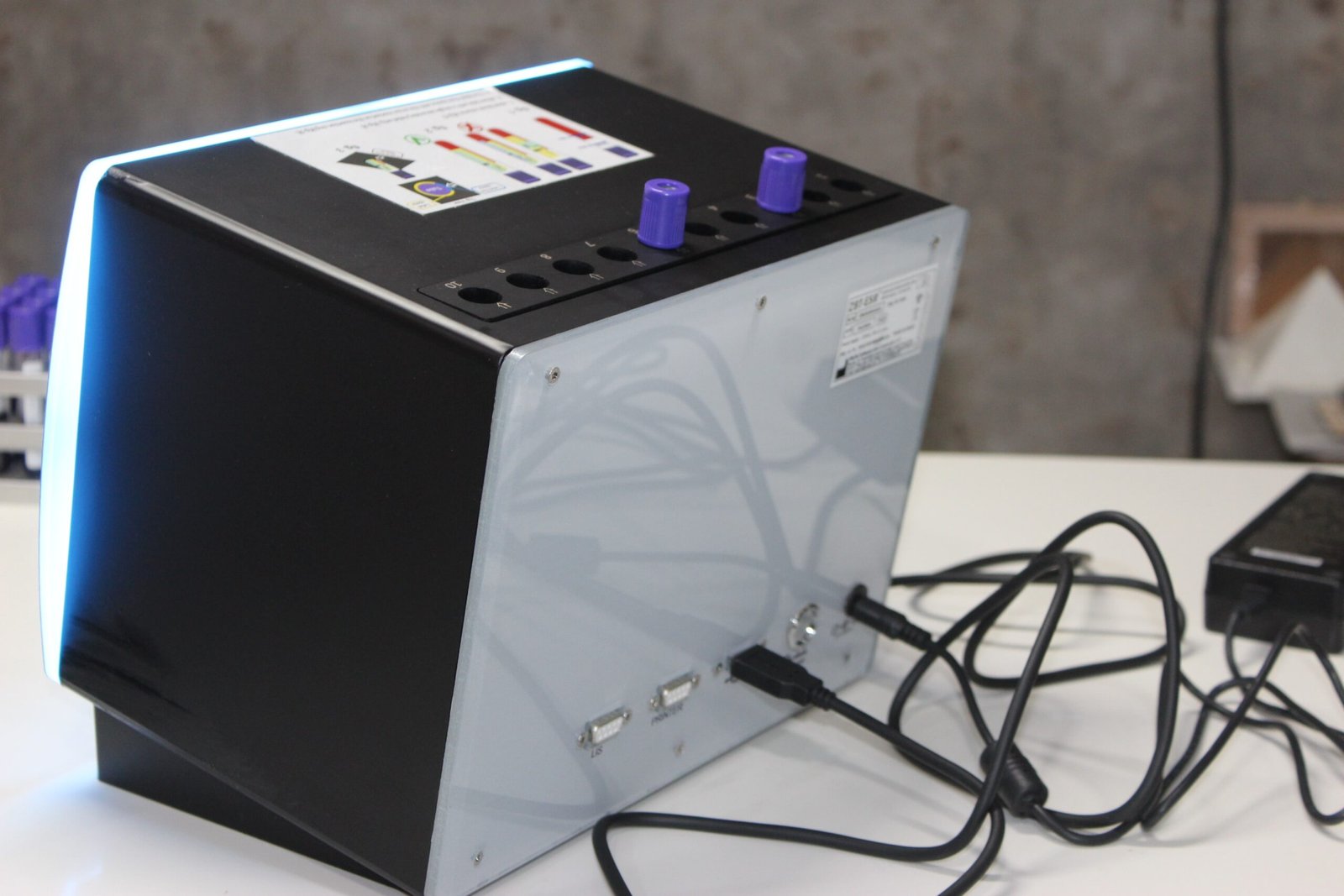

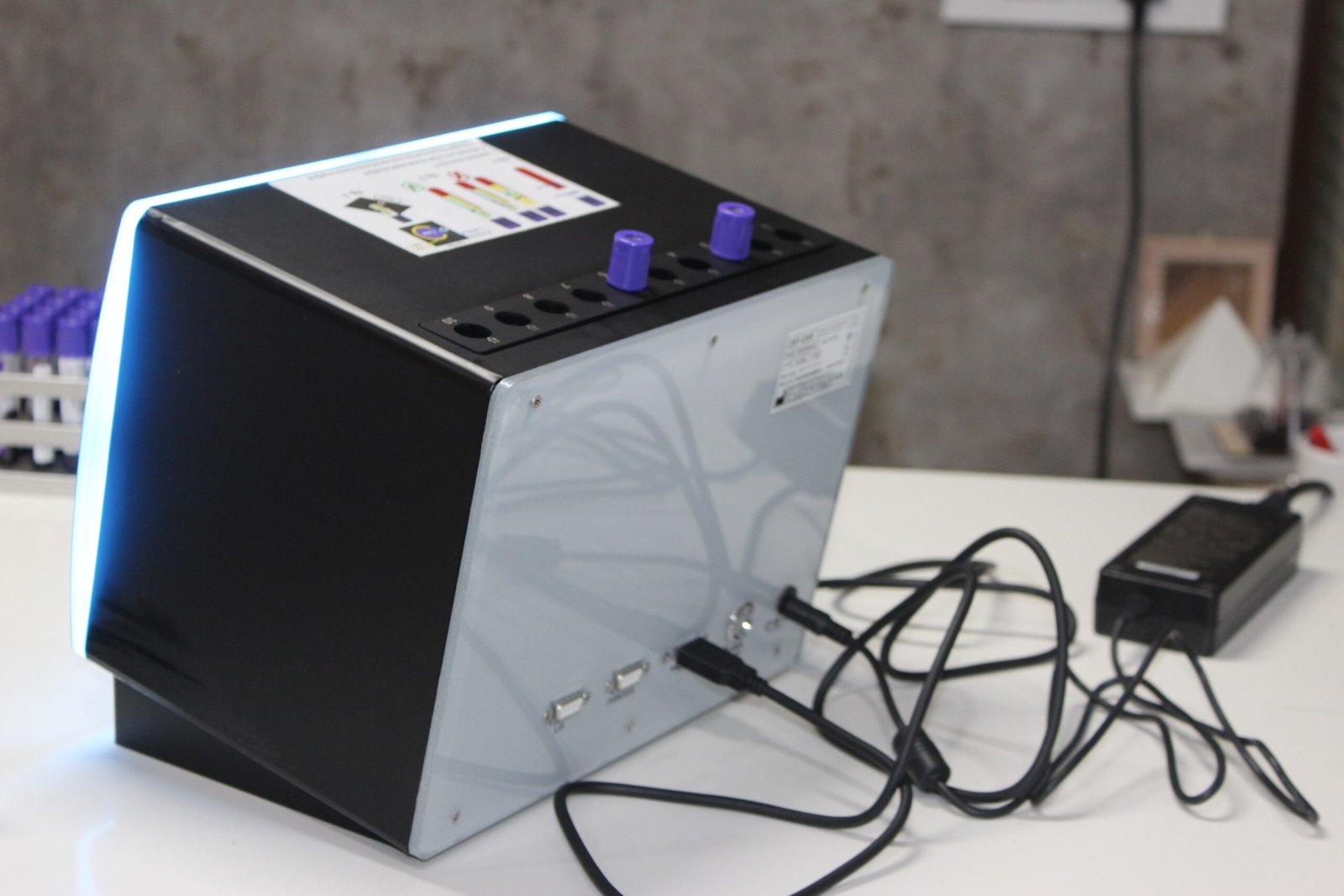

- 2 × USB, RS-232 / HL7 (barcode reader, thermal printer)
- Power
- 110–230 V AC, 50/60 Hz
- Dimensions
- 280 × 189 × 231 mm
- Weight
- 4 kg
- Operating
- 15–30 °C · 20–80% RH
Ordering information
- ZBT-ESR DT10 analyzer (10/60-channel, random access)
- DT10
- Thermal printer
- ZBPRT
- Barcode scanner
- ZBCR
Applications
Where ZBT-ESR® fits
Pathology laboratories
High-volume ESR integrated with the CBC workflow, with no citrate handling.
Hospital diagnostics
Inflammation screening and monitoring alongside the complete blood count.
Clinical testing facilities
Fast, standardized ESR with random-access loading and low waste.
Standards & registrations
- ISO 13485:2016
- USFDA Registered
- CE
- CDSCO
- RoHS
- IEC 61010-1:2010
- IEC 61010-2-101:2018
- IEC 61010-1:2010/AMD1:2016
- IEC 61326-1:2020
- IEC 61326-2-6:2020
Frequently asked questions
No. ZBT-ESR® runs the ESR test directly from the standard EDTA / CBC tube already drawn for the blood count — there is no separate citrate tube and no dilution step.
ZBT-ESR® reports modified-Westergren results in about 20 minutes, with continuous random-access loading across 10 channels (up to 60).
As little as 2 mL of whole blood in the standard EDTA / CBC tube.
A modified Westergren method, with results reported at 18 °C for consistency.
Yes. ZBT-ESR® connects over RS-232 with HL7, and includes a barcode reader and thermal printer.
ZBT-ESR® runs from the EDTA / CBC tube with no citrate, while ZellESR® is a Westergren analyzer that uses 3.8% sodium-citrate tubes with infrared LED detection.
Request a quote for ZBT-ESR®
Tell us about your laboratory, throughput, and connectivity needs. Our team will help confirm the right configuration and pricing.
