Sheath-flow cytometry + laser scatter
White cells differentiated by sheath-flow cytometry with tri-angle laser scatter for a reliable 5-part differential.
Automatic 5-Part Hematology Analyser
ZellCounter 5-Part Differential Auto Hematology Analyzer
Five differentials, one insight — a 5-part auto hematology analyzer combining sheath-flow cytometry, tri-angle laser scatter, and impedance counting.
- 5-part WBC differential
- 25 reportable (+12 research) parameters
- 60 samples per hour
- 15 µL sample volume
Overview

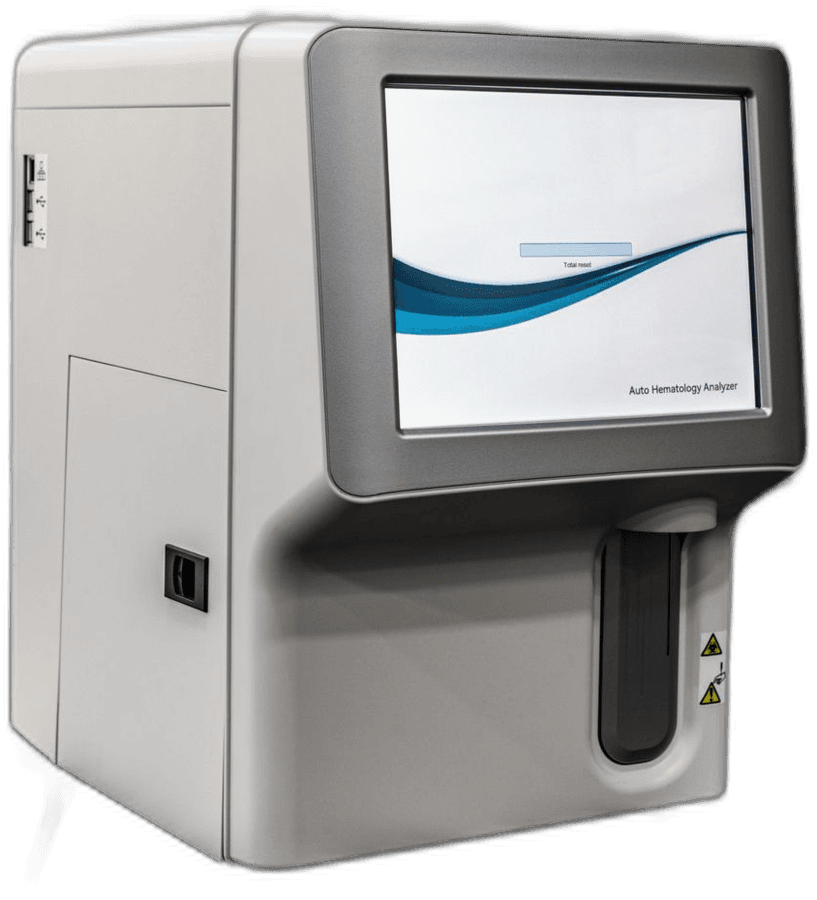

ZellCounter hematology analyzer
ZellCounter is a 5-part differential auto hematology analyzer combining sheath-flow cytometry, tri-angle laser scatter, and impedance counting — reporting 25 parameters (plus 12 research parameters).
Read the full overview
White cells are differentiated by sheath-flow cytometry with tri-angle laser scatter across a dedicated DIFF and basophil optical channel; red cells and platelets are counted by impedance, and hemoglobin is measured cyanide-free. Whole-blood and pre-diluted modes each run CBC or CBC+DIFF at 60 samples per hour.
A 10.4-inch touchscreen presents 3 histograms and 3 DIFF + 1 BASO scattergrams, with one-click troubleshooting, abnormal-cell alarms, storage for up to 50,000 results, and LIS connectivity over HL7.
At a glance
- Principle
- Flow cytometry + laser scatter + impedance
- Parameters
- 25 reportable + 12 research
- Throughput
- 60 samples/hr
- Sample
- 15 µL whole blood / 20 µL pre-diluted
Who is it for?
Clinical and hospital laboratories performing complete blood counts with a 5-part white-cell differential.
What problem does it solve?
Laboratories need an accurate, higher-throughput 5-part CBC differential in a compact, easy-to-operate analyzer.
Key features
Dual optical channel
Dedicated DIFF and basophil optical channels for clearer white-cell separation.
Impedance + cyanide-free HGB
Red cells and platelets counted by impedance; hemoglobin measured cyanide-free.
Whole-blood & pre-diluted
Both modes run CBC or CBC+DIFF at 60 samples per hour.
Rich data presentation
3 histograms and 3 DIFF + 1 BASO scattergrams with abnormal-cell alarms and one-click troubleshooting.
10.4" touch, connected
10.4-inch touchscreen, up to 50,000 stored results, 4× USB · LAN · LIS HL7.
How it works
- 01
Aspirate sample
Load 15 µL of whole blood (or 20 µL pre-diluted) in whole-blood or pre-diluted mode.
- 02
Multi-technology analysis
Sheath-flow cytometry + tri-angle laser scatter (5-part WBC), impedance (RBC/PLT), and cyanide-free HGB.
- 03
Report & connect
25 report + 12 research parameters with histograms and scattergrams, transmitted to the LIS over HL7.
Technical specifications
- Principle
- Flow cytometry + laser scatter + impedance
- Parameters
- 25 reportable + 12 research
- Throughput
- 60 samples/hr
- Sample
- 15 µL whole blood / 20 µL pre-diluted
- Modes
- Whole-blood & pre-diluted (CBC, CBC+DIFF)
- Hemoglobin
- Cyanide-free
- Display
- 10.4" TFT touchscreen
- Interface
- 4 × USB · LAN · LIS HL7
- Result storage
- Up to 50,000 results
- Power
- 100–240 V AC, 50/60 Hz
- Dimensions
- 420 × 295 × 430 mm
- Weight
- ≤ 24 kg
Applications
Where ZellCounter fits
WBC & 5-part differential
WBC, Neu#, Lym#, Mon#, Eos#, Bas#, Neu%, Lym%, Mon%, Eos%, Bas%.
RBC & indices
RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD.
Platelet
PLT, MPV, PDW, PCT, P-LCR, P-LCC.
Research parameters
LIC, ALY, NRBC, Blast, Lip, and PLT-Clumps (# and %).
Standards & registrations
- ISO 13485:2016
- USFDA Registered
- CE
- CDSCO
- RoHS
- IEC 61010-1:2010
- IEC 61010-2-101:2018
- IEC 61010-1:2010/AMD1:2016
- IEC 61326-1:2020
- IEC 61326-2-6:2020
Frequently asked questions
ZellCounter is a 5-part differential automatic hematology analyzer that runs the complete blood count with a 5-part white-cell differential.
It combines sheath-flow cytometry with tri-angle laser scatter for the WBC differential, impedance for RBC and platelets, and cyanide-free hemoglobin measurement.
25 reportable parameters plus 12 research parameters, with histograms and scattergrams.
Up to 60 samples per hour, from 15 µL of whole blood (or 20 µL pre-diluted).
Yes. ZellCounter provides 4× USB, LAN, and LIS connectivity over HL7, with storage for up to 50,000 results.
