Automatic ESR Analyser

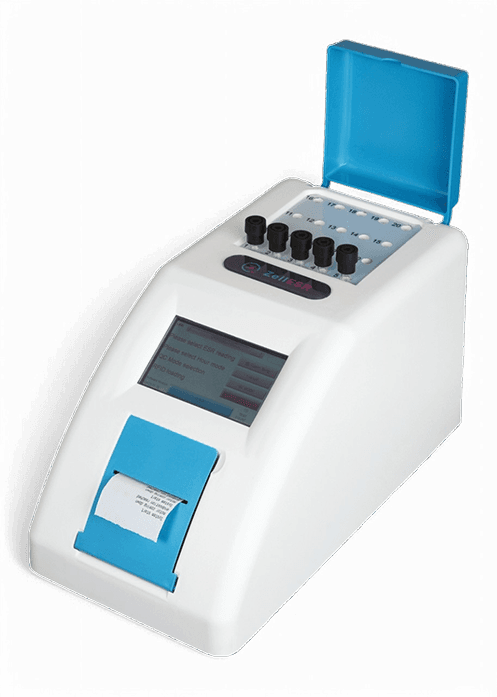

ZellESR® Automated Westergren ESR Analyzer with Infrared LED Detection
Sedimentation, simplified — automated Westergren-standardized ESR with infrared LED detection and random-access loading.
- Infrared LED detection
- Westergren method, automatic 18 °C compensation
- 20 channels, random access
- Results in 30 / 60 minutes (12-minute early indication)
Overview

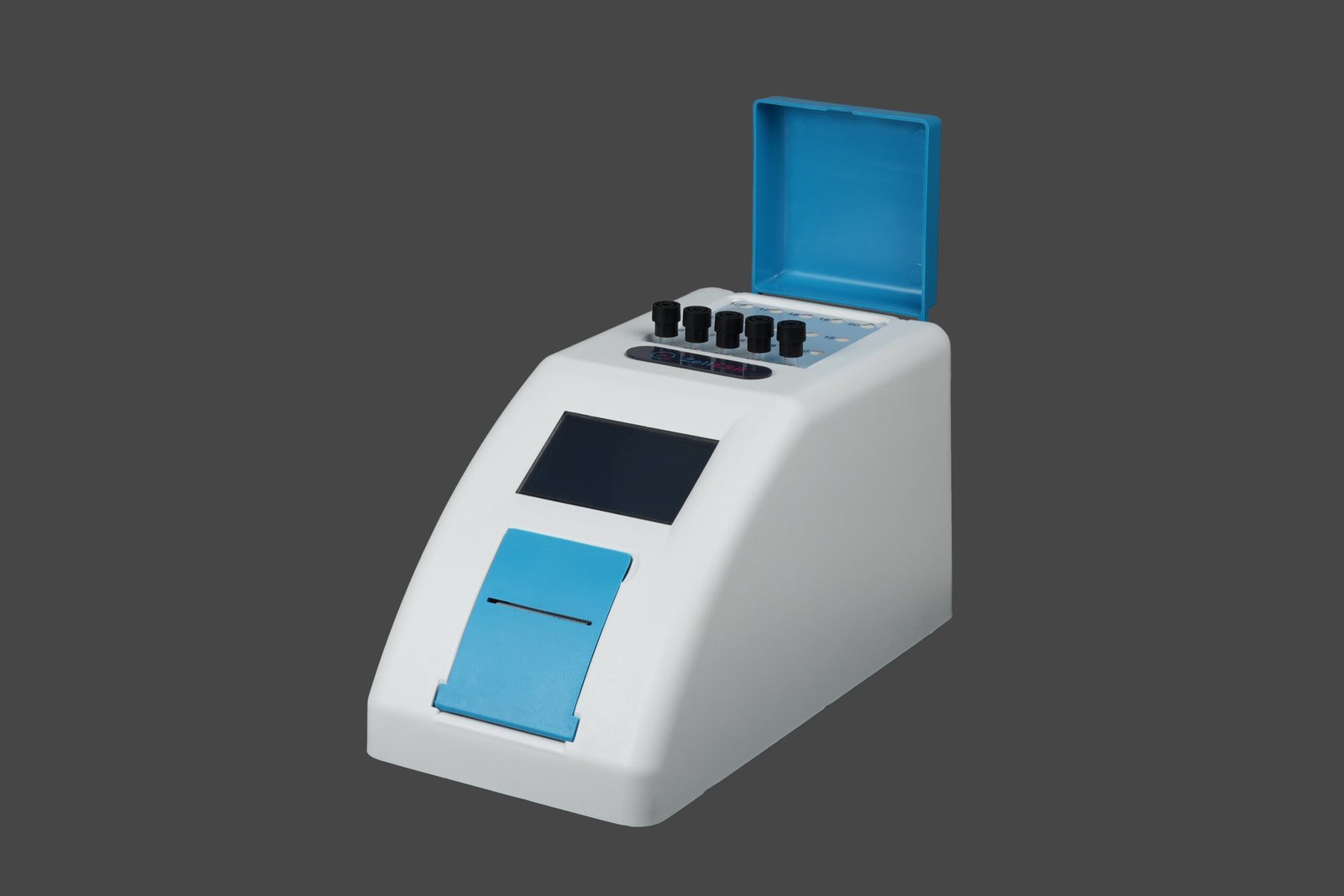

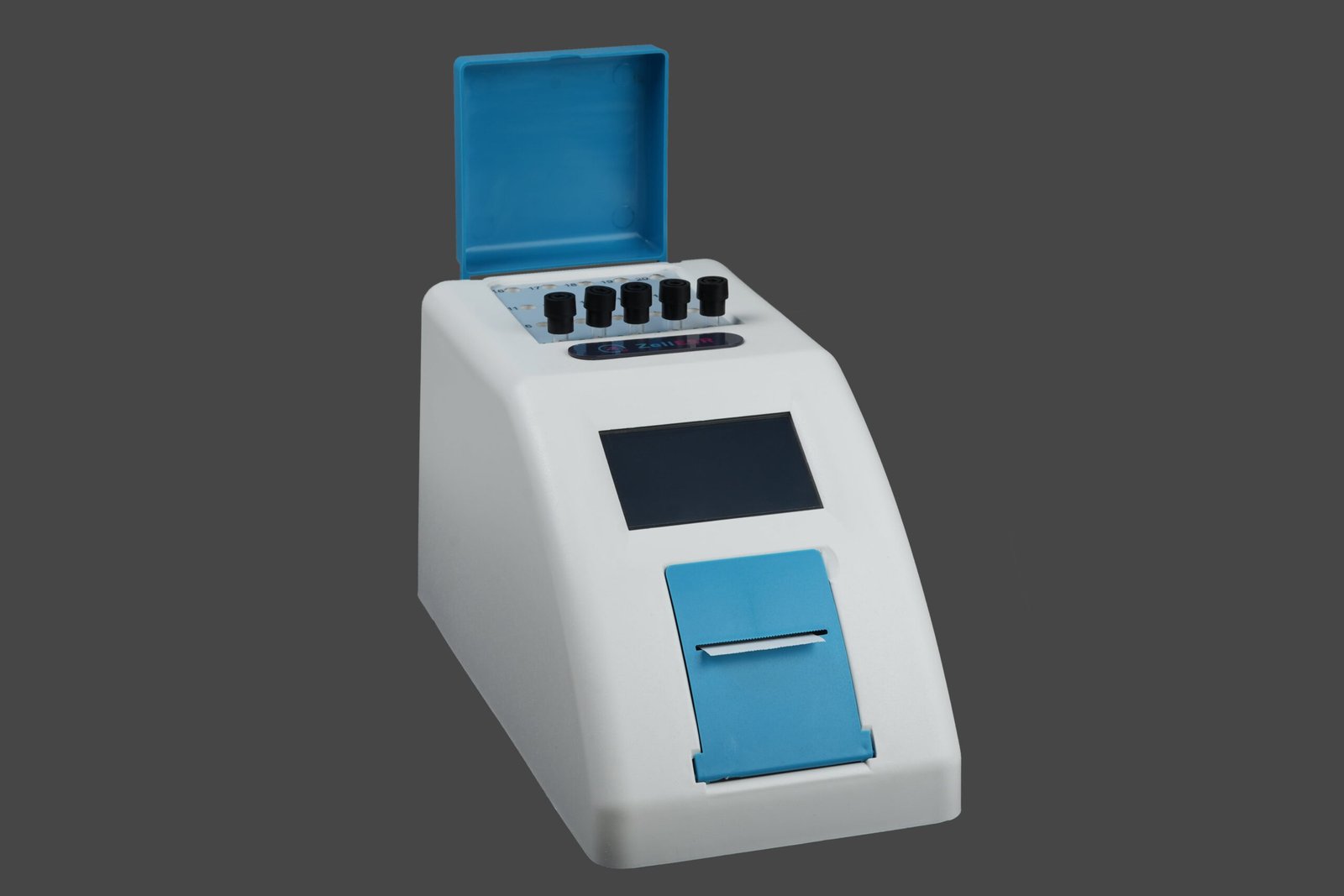

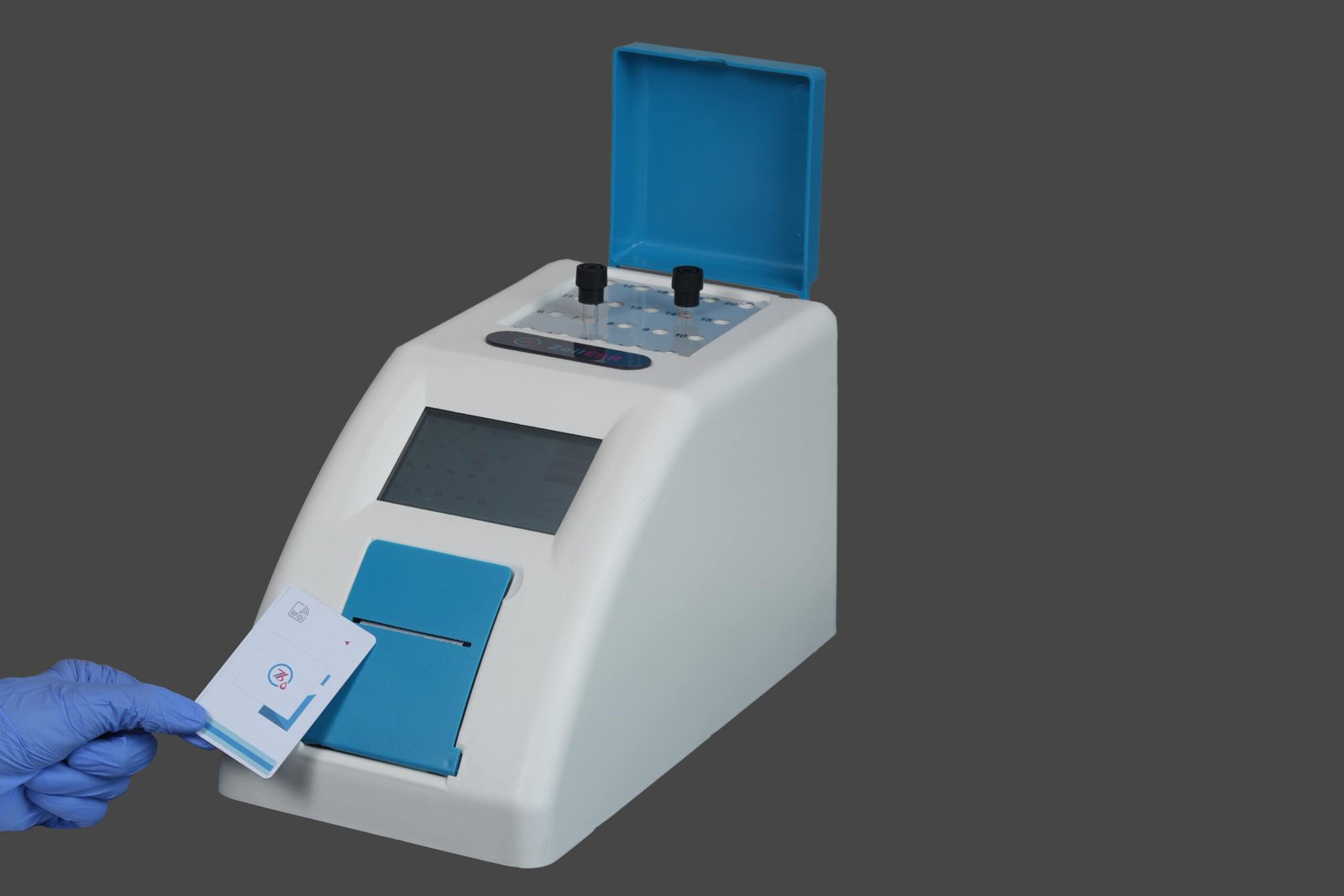

ZellESR® esr analyzer
ZellESR® delivers automated erythrocyte sedimentation rate testing with Westergren-standardized results, infrared LED detection, and minimal manual handling.
Read the full overview
Erythrocyte sedimentation is measured by infrared LED detection and reported as Westergren-equivalent results in 30 or 60 minutes, with automatic temperature compensation to 18 °C (Manley table). Vacuum tubes with 3.8% sodium citrate load in random access, and an early pre-indication is available at 12 minutes.
A 4.2-inch color touchscreen, built-in thermal printer, barcode scanning, and LIS connectivity over RS-232 / HL7 keep the workflow simple and traceable.
At a glance
- Principle
- Infrared LED detection
- Method
- Westergren-equivalent, automatic 18 °C compensation (Manley table)
- Channels
- 20, random access
- Analysis time
- 30 / 60 minutes (early indication at 12 minutes)
Who is it for?
Hospitals, clinical laboratories, and research facilities that need standardized, automated Westergren ESR.
What problem does it solve?
Manual Westergren ESR is slow, operator-dependent, and difficult to standardize, limiting throughput and reproducibility.
Key features
Automatic temperature compensation
Results are compensated to 18 °C using the Manley table for consistency across conditions.
Random-access loading
3.8% sodium-citrate vacuum tubes load in random access, with an early indication available at 12 minutes.

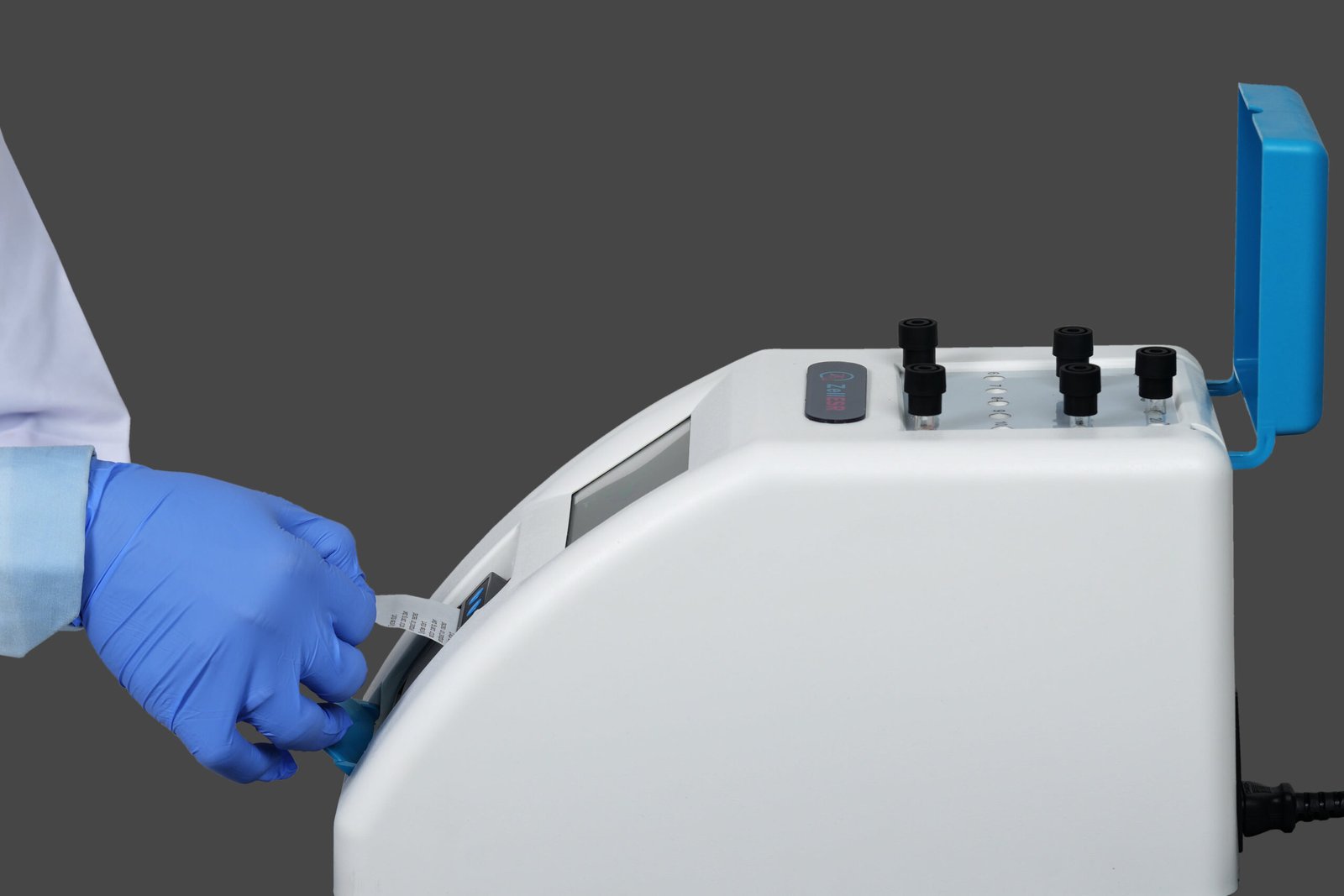

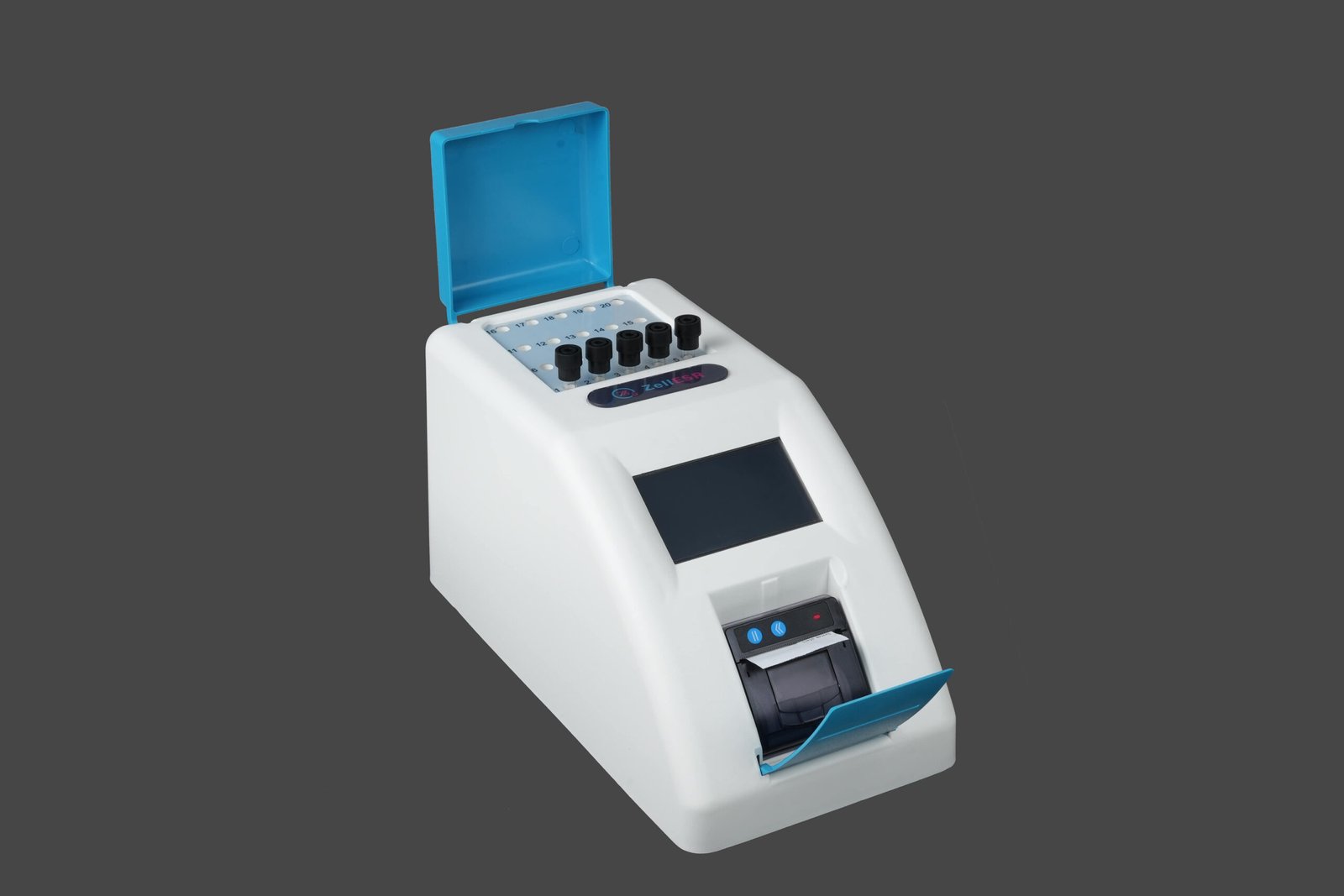

Built-in thermal printer
On-board printing plus barcode scanning and manual entry for flexible operation.
Wide range & accuracy
1–140 mm/hr measurement range with ±1 mm accuracy and CV < 5%.
LIS / HL7 ready
Connects to the laboratory information system over RS-232 with HL7.
How it works
- 01

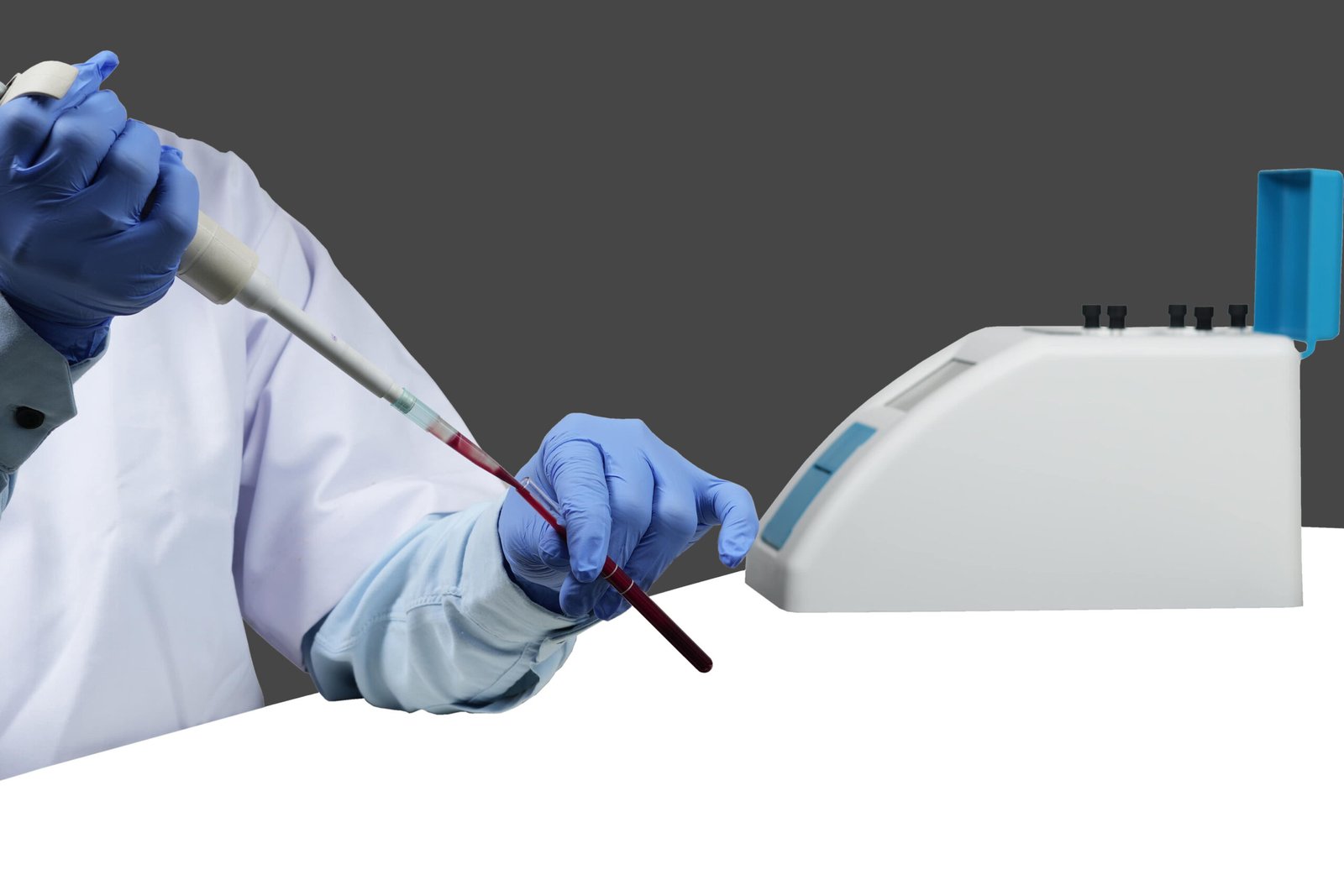

Load citrate tubes

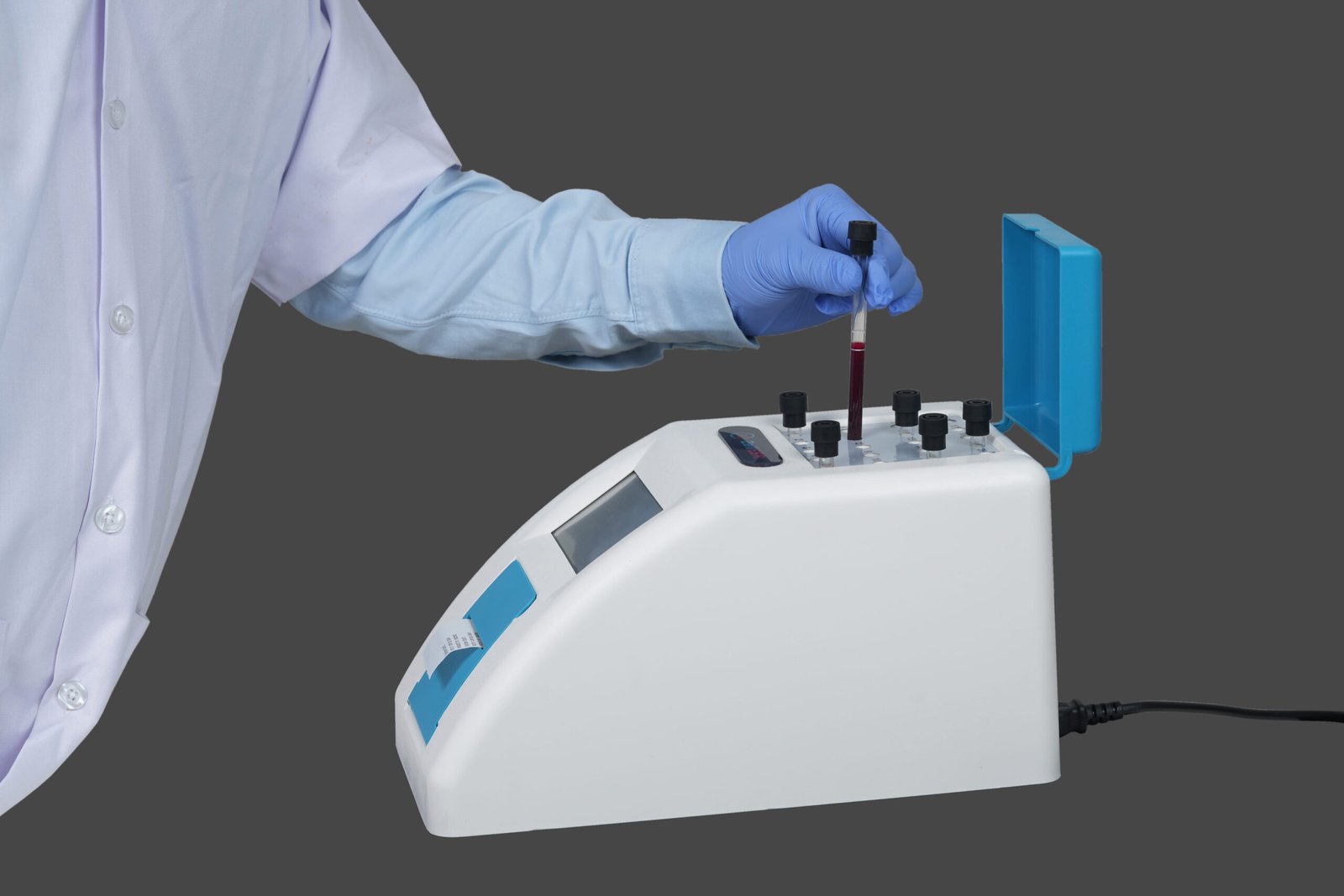

Insert 3.8% sodium-citrate vacuum tubes in random access across 20 channels.
- 02
Infrared LED measurement
Sedimentation is measured optically with automatic 18 °C compensation; an early indication is available at 12 minutes.
- 03
Report in 30 / 60 minutes
Westergren-equivalent results (1–140 mm/hr) are printed and sent to the LIS over HL7.
Technical specifications
- Principle
- Infrared LED detection
- Method
- Westergren-equivalent, automatic 18 °C compensation (Manley table)
- Channels
- 20, random access
- Analysis time
- 30 / 60 minutes (early indication at 12 minutes)
- Measurement range
- 1–140 mm/hr (±0.1 mm)
- Accuracy
- ±1 mm · CV < 5%
- Display
- 4.2" color touchscreen
- Result memory
- 9,999 results
- Sample tubes
- 3.8% sodium-citrate vacuum tubes
- Connectivity
- RS-232 / HL7 (barcode + manual entry)
- Power
- 110–230 V AC, 50/60 Hz
- Dimensions
- 323 × 196 × 187 mm
- Weight
- 3.8 kg
Models
ZellESR20 Analyzer
ZE 2020-channel automated Westergren ESR analyzer with infrared LED detection.
Ordering information
- ZellESR20 analyzer (20-channel)
- ZE 20
- ESR tubes (3.8% sodium citrate)
- ZEA01
- Barcode scanner
- ZBCR
Applications
Where ZellESR® fits
Hospital laboratories
Standardized, automated Westergren ESR with reliable turnaround.
Clinical laboratories
Higher-throughput ESR with random-access loading and onboard storage.
Research facilities
Reproducible ESR measurement for inflammation-related studies.
Standards & registrations
- ISO 13485:2016
- USFDA Registered
- CE
- CDSCO
- RoHS
- IEC 61010-1:2010
- IEC 61010-2-101:2018
- IEC 61010-1:2010/AMD1:2016
- IEC 61326-1:2020
- IEC 61326-2-6:2020
Frequently asked questions
ZellESR® uses infrared LED detection with a Westergren-equivalent method and automatic temperature compensation to 18 °C.
ZellESR® provides 20 channels with random-access loading, so urgent samples can be added without waiting for a batch.
Results are reported in 30 or 60 minutes, with an early pre-indication available at 12 minutes.

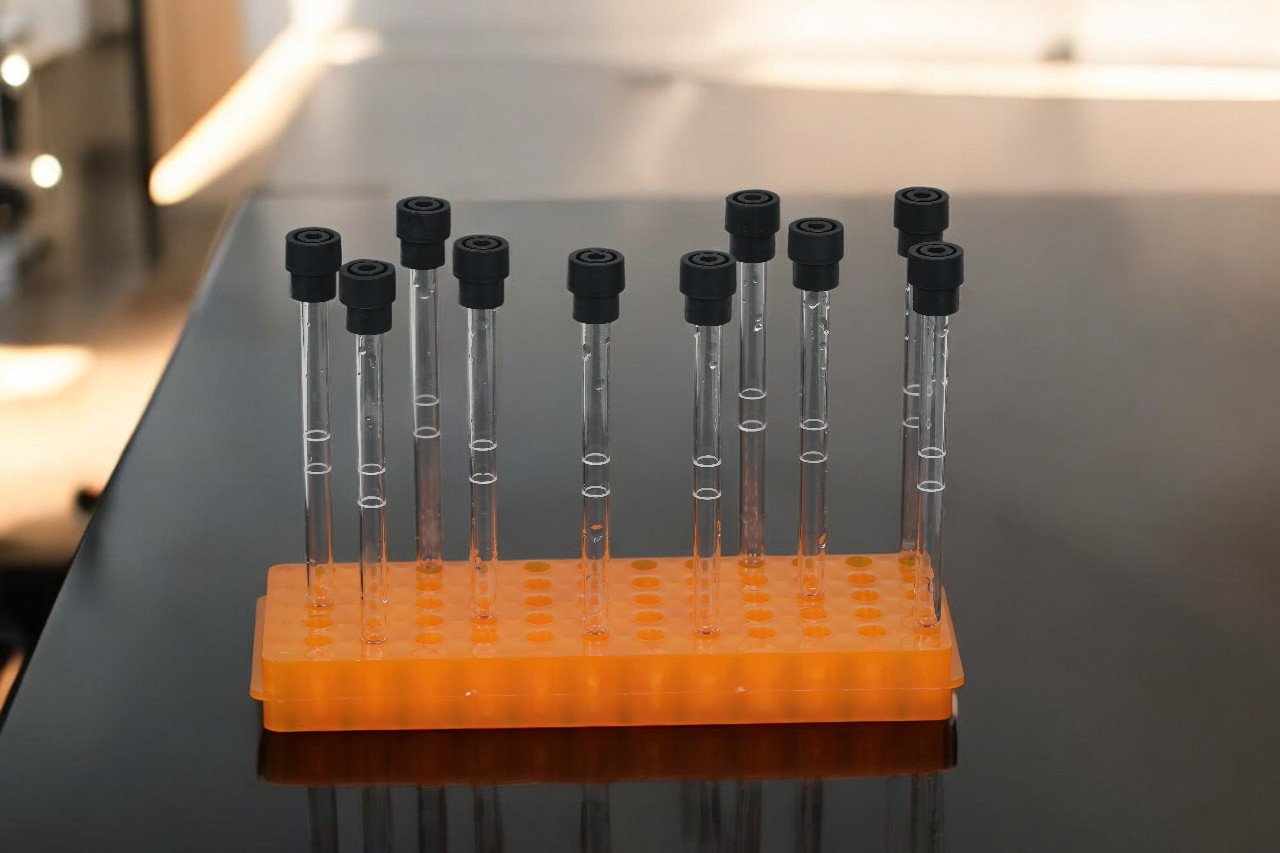

Vacuum tubes with 3.8% sodium citrate.
Yes. ZellESR® connects over RS-232 with HL7 and supports barcode scanning and manual entry.
Request a quote for ZellESR®
Tell us about your laboratory, throughput, and connectivity needs. Our team will help confirm the right configuration and pricing.
