Random access + STAT
Continuous random access with STAT priority insertion for urgent samples.
Fully Automatic Biochemistry Analyser
ZellECHEM 200 Fully Automatic Biochemistry Analyzer
Built for better chemistry — a fully automatic, random-access clinical chemistry analyzer with STAT priority and a broad assay menu.
- Up to 200 tests/hr (400 with ISE)
- Random access with STAT priority
- Colorimetric, turbidimetric & ISE (optional)
- 8 wavelengths (340–700 nm)
Overview

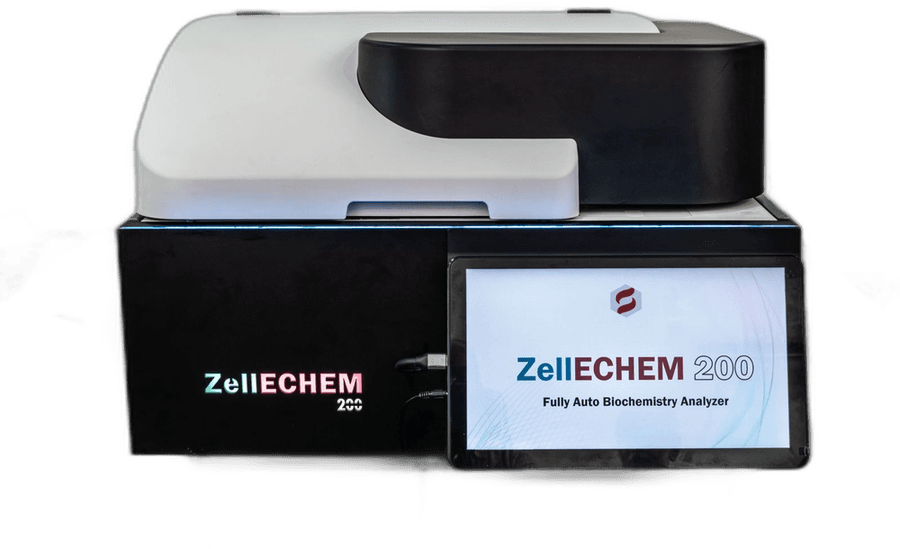

ZellECHEM 200 biochemistry analyzer
ZellECHEM 200 is a fully automatic, random-access clinical chemistry analyzer with STAT priority — offering colorimetric, turbidimetric, and optional ISE methods across a broad assay menu at up to 400 tests per hour.
Read the full overview
A 2000-hour halogen source feeds an 8-wavelength optical system (340–700 nm) reading 48 recyclable cuvettes at 37 ± 0.1 °C. A single precision probe with liquid-level detection and anti-collision serves 40 sample and 80 reagent positions, running endpoint, fixed-time, and kinetic methods.
HbA1c whole-blood Intelligent-Sampling, Westgard / Levey-Jennings QC with 8-point calibration, automatic dilution and retest, and 24-hour reagent cooling make it a dependable workhorse for higher-volume laboratories.
At a glance
- Type
- Fully automatic, random-access clinical chemistry
- Throughput
- 200 tests/hr (400 with ISE)
- Methods
- Colorimetric · turbidimetric · ISE (optional)
- Optical
- 8 wavelengths, 340–700 nm
Who is it for?
Mid- to higher-volume clinical laboratories and hospitals needing fully automated, random-access clinical chemistry.
What problem does it solve?
Growing test volumes and STAT demands outpace semi-automatic chemistry, requiring random access, automation, and a broad menu.
Key features
Broad methodology
Colorimetric, turbidimetric, and optional ISE methods across a wide assay menu.
Precision probe
A single precision probe with liquid-level detection and anti-collision; Teflon-coated mixer for low carry-over.
Smart automation
Automatic dilution and retest, 24-hour reagent cooling, and reagents managed via barcode.
HbA1c Intelligent-Sampling
Whole-blood HbA1c with Intelligent-Sampling.
Quality control
Westgard rules and Levey-Jennings QC with 8-point calibration.
How it works
- 01
Load samples & reagents
40 sample and 80 reagent positions; reagents identified via barcode, with STAT priority insertion.
- 02
Automated analysis
A single precision probe dispenses into 48 cuvettes at 37 ± 0.1 °C, read by an 8-wavelength optical system.
- 03
Report up to 400/hr
Endpoint, fixed-time, and kinetic results with auto dilution/retest and LIS connectivity.
Technical specifications
- Type
- Fully automatic, random-access clinical chemistry
- Throughput
- 200 tests/hr (400 with ISE)
- Methods
- Colorimetric · turbidimetric · ISE (optional)
- Optical
- 8 wavelengths, 340–700 nm
- Light source
- 2000-hour halogen
- Cuvettes
- 48 recyclable · 70–315 µL · 37 ± 0.1 °C
- Sample volume
- 1.5–45 µL (ISE 70 / 140 µL)
- Positions
- 40 sample + 80 reagent
- Quality control
- Westgard / Levey-Jennings · 8-point calibration
- Power
- 100–240 V, 50/60 Hz · 500 VA
- Dimensions
- 750 × 565 × 507 mm
- Weight
- 60 kg
Applications
Where ZellECHEM 200 fits
Liver function
ALT, AST, ALP, GGT, TBIL, DBIL, TP, ALB, ADA, TBA, PA, LAP, CHE.
Renal function
UREA, CREA, UA, Cys-C, RBP, UMA, B2M, α-AMY.
Blood lipid
TG, CHO, LDL-C, HDL-C, ApoA1, ApoB, Lp(a), NEFA.
Blood sugar
GLU, HbA1c, FMN.
Electrolytes & gas
Ca, CO₂, Mg, Fe, P.
Special protein
ASO, RF, CRP, hs-CRP, IgA, IgG, IgM.
Cardiac enzymes
CK, CK-MB, LDH, α-HBDH, HCY.
Standards & registrations
- ISO 13485:2016
- USFDA Registered
- CE
- CDSCO
- RoHS
- IEC 61010-1:2010
- IEC 61010-2-101:2018
- IEC 61010-1:2010/AMD1:2016
- IEC 61326-1:2020
- IEC 61326-2-6:2020
Frequently asked questions
Up to 200 tests per hour, or 400 tests per hour with ISE.
Colorimetric and turbidimetric methods, plus optional ISE, running endpoint, fixed-time, and kinetic reactions.
Yes. ZellECHEM 200 offers whole-blood HbA1c with Intelligent-Sampling.
It uses Westgard rules and Levey-Jennings QC with 8-point calibration, plus automatic dilution and retest.
ZellECHEM 200 is a fully automatic, random-access analyzer for higher volumes, while ZellECHEM is a compact semi-automatic benchtop chemistry analyzer.
Request a quote for ZellECHEM 200
Tell us about your laboratory, throughput, and connectivity needs. Our team will help confirm the right configuration and pricing.
