Multiple analytical modes
Endpoint, kinetic, fixed-time, and bichromatic absorbance reads via a photodiode detector.
Semi-Automated Chemistry Analyser

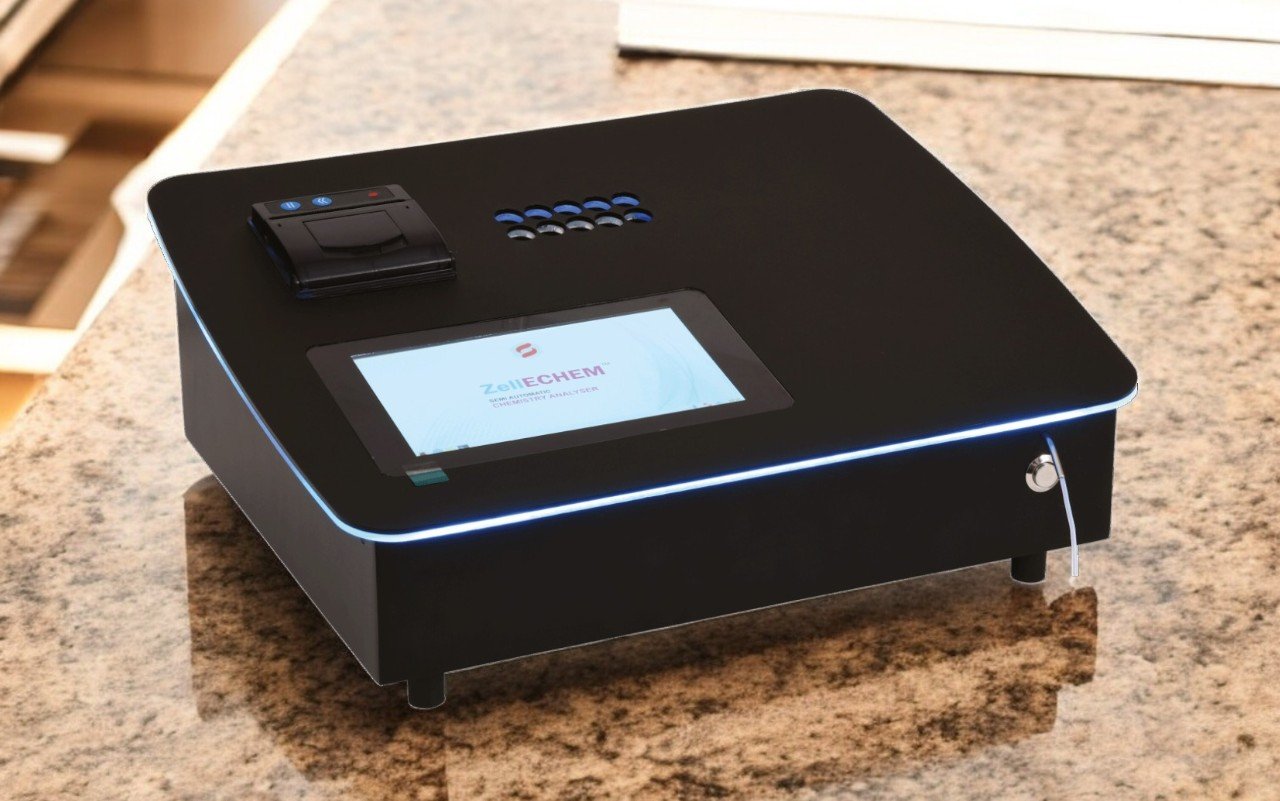

ZellECHEM® Semi-Automated Biochemistry Analyzer
Built for better chemistry — a compact benchtop clinical chemistry analyzer with inbuilt incubation and printer.
- Endpoint, kinetic, fixed-time & bichromatic
- 6+2 filter wheel, photodiode detector
- Inbuilt incubation & thermal printer
- 3-level QC (Levey-Jennings)
Overview

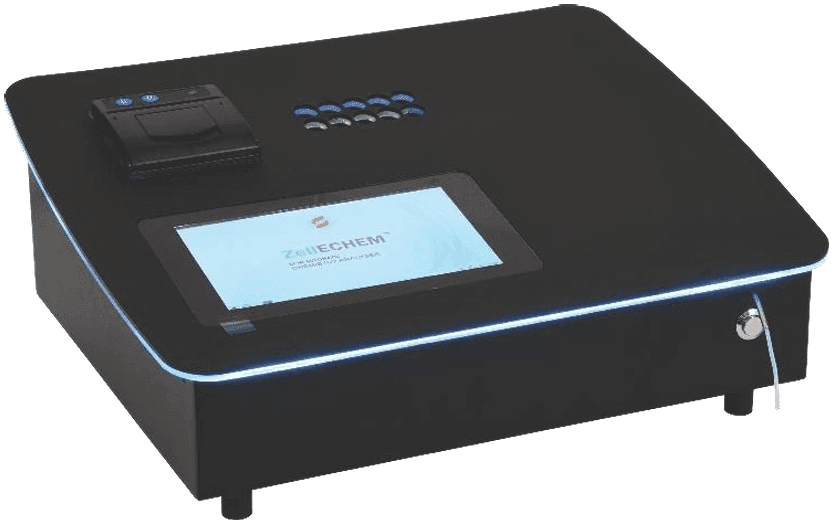

ZellECHEM® biochemistry analyzer
ZellECHEM® is a compact benchtop chemistry analyzer covering routine blood work — liver and renal function, glucose, lipids, cardiac enzymes, immunoglobulins, and electrolytes — with inbuilt incubation and a printer.
Read the full overview
A 6 V / 10 W halogen source and a 6+2-position filter wheel feed a photodiode detector for endpoint, kinetic, fixed-time, and bichromatic absorbance reads. A peristaltic pump aspirates 200–1000 µL through an 18 / 32 µL flowcell, with Peltier temperature control (25–37 °C) and three-level QC on Levey-Jennings plots.
A 7-inch touchscreen, 100 test programs, large result memory, WiFi software updates, and LIS connectivity over RS-232 / HL7 round out a flexible, cost-efficient platform.
At a glance
- Methods
- Endpoint, kinetic, fixed-time, bichromatic
- Calibration
- 1/2-point linear & multi-standard
- Wavelengths
- 340/405/505/546/578/630 nm + 2 optional
- Light source
- 6 V / 10 W halogen (320–1000 nm)
Who is it for?
Pathology laboratories, clinical testing facilities, research institutions, and hospital diagnostic departments.
What problem does it solve?
Smaller and mid-sized laboratories need accurate clinical chemistry without the cost or footprint of a large automated platform.
Key features
6+2 filter wheel
Wavelengths at 340/405/505/546/578/630 nm, plus two optional positions.
Inbuilt incubation & printer
Integrated incubation and thermal printing streamline the bench workflow.
Peristaltic aspiration
A peristaltic pump aspirates 200–1000 µL through an 18 / 32 µL flowcell with Peltier control (25–37 °C).
3-level quality control
Three-level QC displayed on Levey-Jennings plots for confident results.
Connected & updatable
7" touchscreen, USB mouse/keyboard, WiFi software updates, and LIS over RS-232 / HL7.
Technical specifications
- Methods
- Endpoint, kinetic, fixed-time, bichromatic
- Calibration
- 1/2-point linear & multi-standard
- Wavelengths
- 340/405/505/546/578/630 nm + 2 optional
- Light source
- 6 V / 10 W halogen (320–1000 nm)
- Photometric range
- 0.000–3.000 Abs (< 0.005 Abs/hr)
- Flowcell
- 18 / 32 µL
- Aspiration
- Peristaltic, 200–1000 µL
- Reaction temp.
- Peltier, 25–37 °C
- Test programs
- 100
- Result memory
- 9,999 results
- Display
- 7" touchscreen (USB mouse/keyboard)
- Connectivity
- RS-232 / HL7 · WiFi software update
- Power
- 110–230 V AC, 50/60 Hz
- Weight
- 5 kg
- Ambient
- 15–37 °C · 35–80% RH, non-condensing
Models

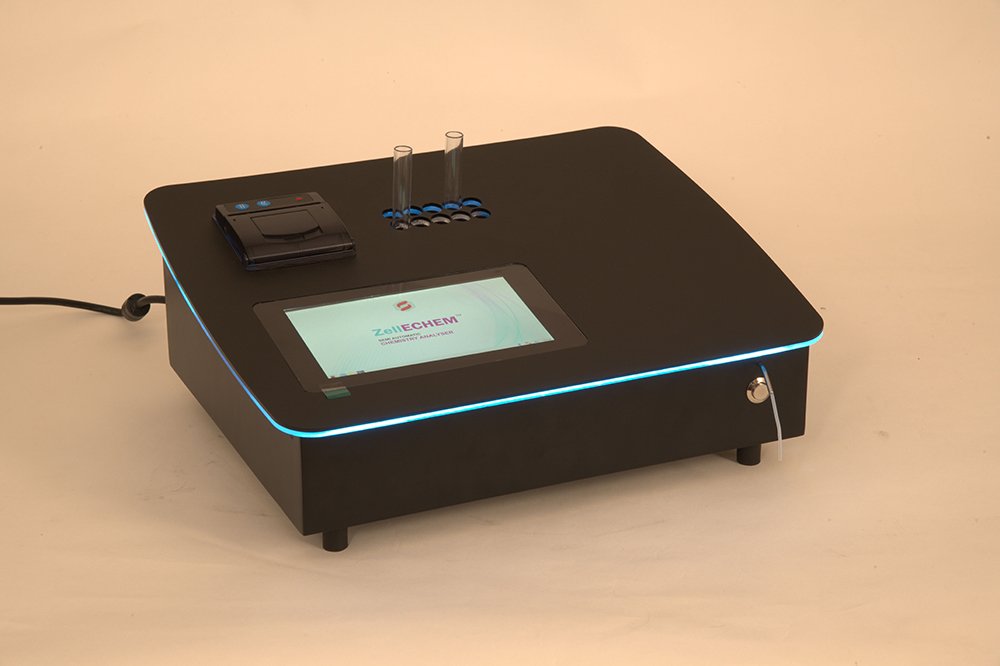

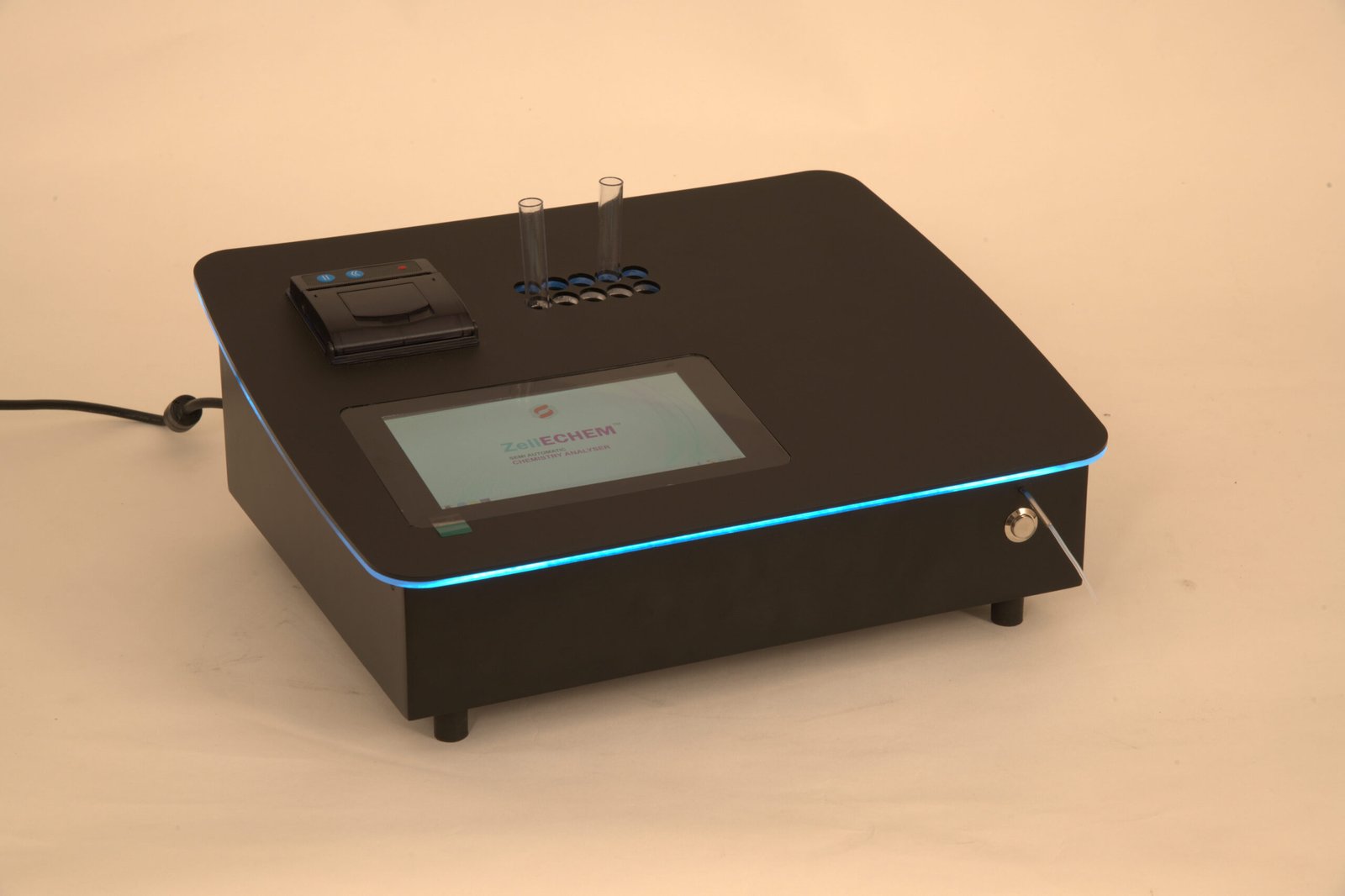

ZellECHEM PRO
ZCH01Full-feature configuration (300 × 350 × 130 mm).

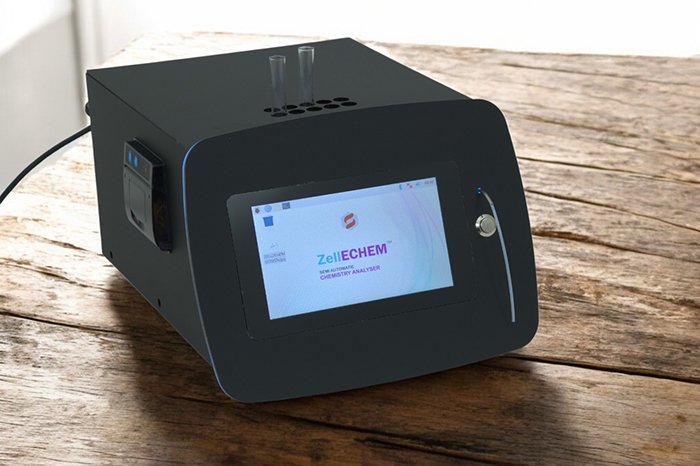

ZellECHEM SR
ZCH02Streamlined configuration (370 × 280 × 210 mm).
Ordering information
- ZellECHEM PRO (300 × 350 × 130 mm)
- ZCH01
- ZellECHEM SR (370 × 280 × 210 mm)
- ZCH02
- ZellECHEM printer
- ZCPRT
- Printer paper roll
- ZPRL
Applications
Where ZellECHEM® fits
Liver & renal function
Routine liver and kidney panels for everyday clinical chemistry.
Glucose & lipids
Blood sugar and lipid profiles with flexible programming.
Cardiac & proteins
Cardiac enzymes, immunoglobulins, and electrolytes across 100 programs.
Standards & registrations
- ISO 13485:2016
- USFDA Registered
- CE
- CDSCO
- RoHS
- IEC 61010-1:2010
- IEC 61010-2-101:2018
- IEC 61010-1:2010/AMD1:2016
- IEC 61326-1:2020
- IEC 61326-2-6:2020
Frequently asked questions
ZellECHEM® is a compact benchtop semi-automated clinical chemistry analyzer with inbuilt incubation and a printer.
Endpoint, kinetic, fixed-time, and bichromatic reads across 340/405/505/546/578/630 nm, plus two optional filter positions.
Up to 100 test programs, with 9,999-result memory and three-level Levey-Jennings QC.
ZellECHEM PRO (ZCH01) and ZellECHEM SR (ZCH02) share the platform in different footprints.
ZellECHEM® is a compact semi-automatic benchtop analyzer, while ZellECHEM 200 is a fully automatic, random-access system for higher volumes.
